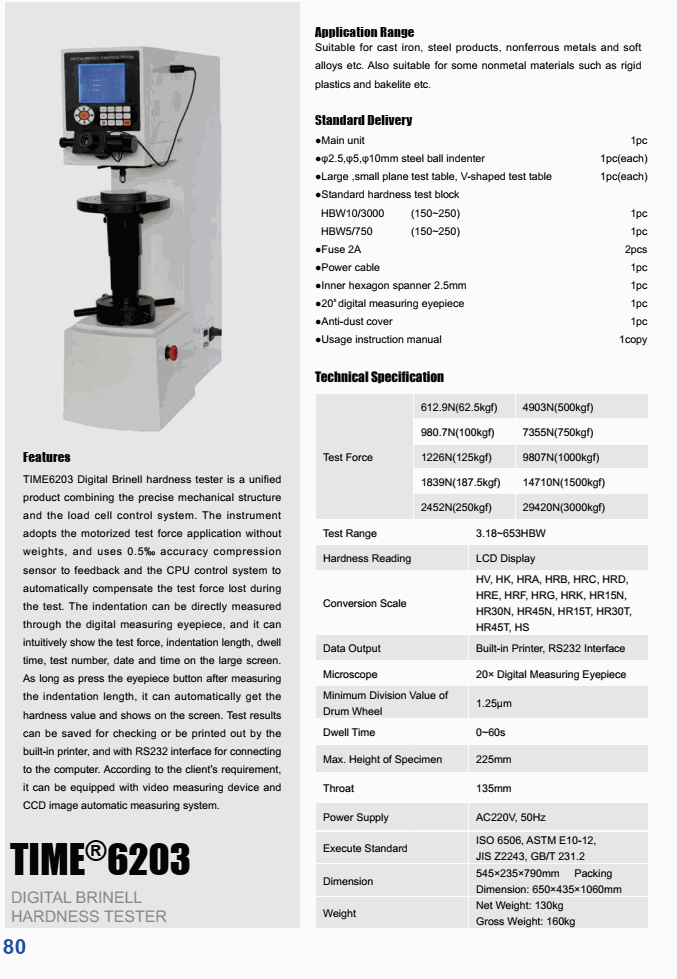

TIME 6203 Digital Brinell Hardness Tester (3.18~653HBW)

Test Force:

612.9n(62.5kgf); 4903n(500kgf)

980.7n(100kgf); 7355n(750kgf)

1226n(125kgf); 9807n(1000kgf)

1839n(187.5kgf) 14710n(1500kgf)

2452n(250kgf); 29420n(3000kgf)

Test Range: 3.18~653HBW

Hardness Reading: LCD Display

Conversion Scale:

HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15n, HR30n, HR45n, HR15T, HR30T, HR45T, HS

Data Output: Built-in Printer, RS232 Interface

Microscope: 20× Digital Measuring Eyepiece

Minimum Division Value of Drum Wheel: 1.25μm

Dwell Time: 0~60s

Max. Height of Specimen: 225mm

Throat: 135mm

Power Supply: AC220V, 50Hz

Execute Standard:

ISO 6506, ASTM E10-12, jIS Z2243, GB/T 231.2

Dimension: 545×235×790mm

Packing Dimension: 650×435×1060mm

Weight

net Weight: 130kg

Gross Weight: 160kg

Standard Delivery

Main unit

Ф2.5mm, Ф5mm, Ф10mm steel ball Indenter

Small Plane Test Table

Standard hardness test block 150~250 HBW 10/3000

2 x Fuse 2A

Inner Hexagon Spanner 2.5mm

20× Digital Measuring Eyepiece

Large Plane Test Table

V-shaped Test Table

Standard hardness test block 150~250 HBW 5/750

Power Cable

Anti-dust Cover

Usage instruction manual
