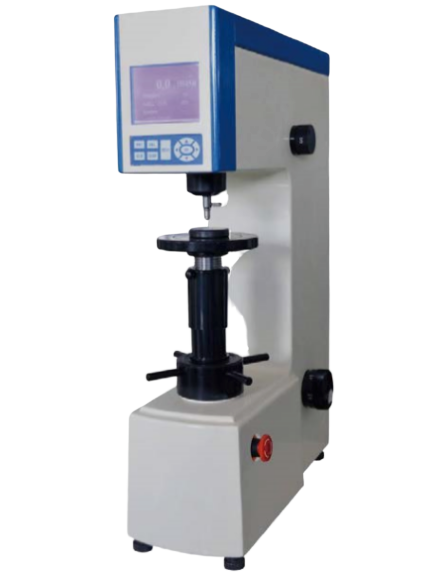

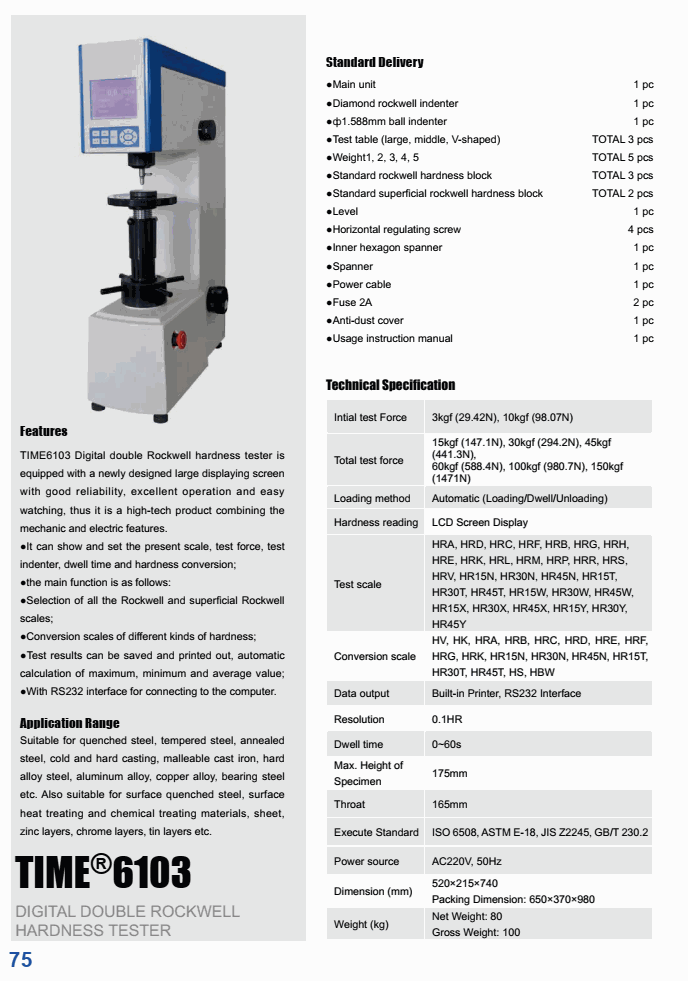

TIME 6103 Digital Double Rockwell Harness Tester (3kgf (29,42n), 10kgf (98,07n))

Intial test Force: 3kgf (29.42n), 10kgf (98.07n)

Total test force:

15kgf (147.1n), 30kgf (294.2n), 45kgf (441.3n), 60kgf (588.4n), 100kgf (980.7n), 150kgf (1471n)

Loading method: Automatic (Loading/Dwell/Unloading)

Hardness reading: LCD Screen Display

Test scale:

HRA, HRD, HRC, HRF, HRB, HRG, HRH, HRE, HRK, HRL, HRM, HRP, HRR, HRS, HRV, HR15n, HR30n, HR45n, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15y, HR30y, HR45y

Conversion scale:

HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15n, HR30n, HR45n, HR15T, HR30T, HR45T, HS, HBW

Data output: Built-in Printer, RS232 Interface

Resolution: 0.1HR

Dwell time: 0~60s

Max. Height of Specimen: 175mm

Throat: 165mm

Execute Standard: ISO 6508, ASTM E-18, jIS Z2245, GB/T 230.2

Power source: AC220V, 50Hz

Dimension (mm)

520×215×740

Packing Dimension: 650×370×980

Weight (kg)

net Weight: 80

Gross Weight: 100

Main unit

Diamond rockwell indenter

ф1.588mm ball indenter

Test table (large, middle, V-shaped)

Weight 1, 2, 3, 4, 5

3x Standard rockwell hardness block

2 x Standard superficial rockwell hardness block Level

4 x Horizontal regulating screw

Inner hexagon spanner

Spanner

Power cable

2x Fuse 2A

Anti-dust cover

Usage instruction manual
