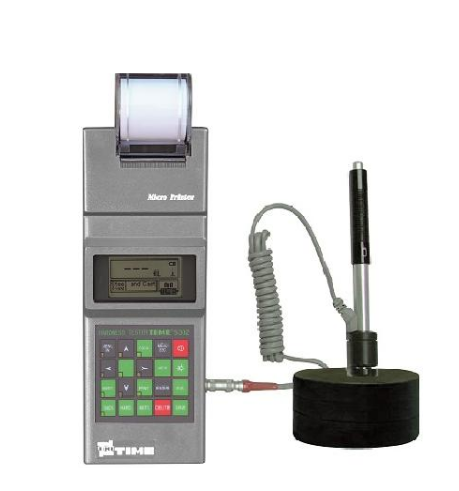

TIME 5302 Portable Hardness Tester (Leeb; type D; 30-110 HSD, HLD)

Specifications:

Hardness scale: HL, HRC, HRB, HRA, HV, HB, HS

Memory: group(Impact times:32-1)

Measuring range: see page 13

Tolerance: see page 14

Tensile strength U.T.S. range: 374~2652 MPa

Standard impact device: D

Optional impact devices: DC/D+15/G/C/DL

Min. Radius of workpiece (convex/concave): Rmin = 50mm (with special support ring Rmin= 10mm)

Max. workpiece hardness: see page 14

Min. workpiece weight: see page 14

Min. workpiece thickness: see page 14

Min. thickness of hardened layers: see page 14

Power: Rechargeable NiMH Battery,5×1.2V 600mAh

Continuous working time: About 50h (without printing and backlight)

Charging time: 2~3.5 hours

Operating temperature: 0~40°C

Humidity: 90%

Dimensions (mm): 268×86×50

Weight (g): 530 (including impact device and printer)

Standard Delivery

Main unit

Impact device type D

Test block HLD

Charger

Cleaning brush

Table support for main unit

Connecting cable

TIME certificate

Warranty card

Datasheet
