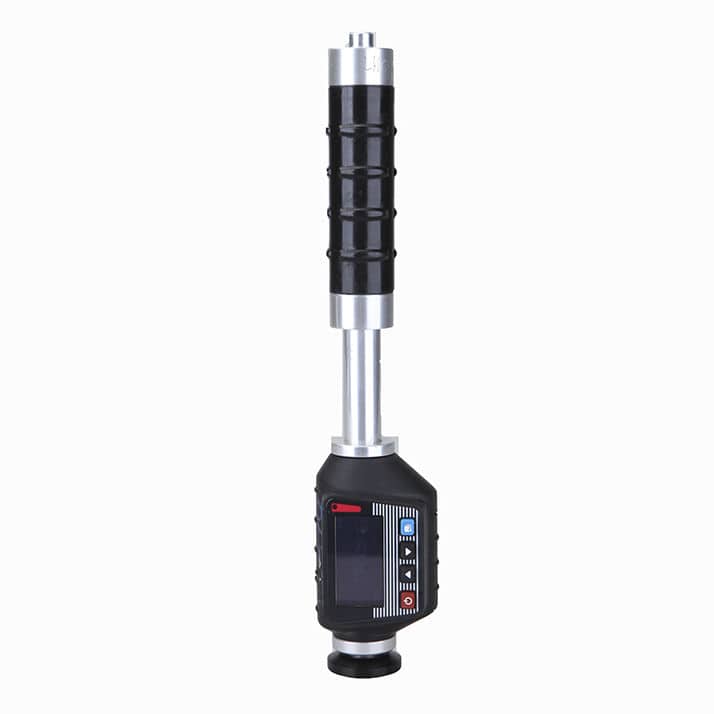

TIME 5106 Portable Hardness Tester (Leeb; Type G)

Specifications:

Impact device: G type

Impact energy: 90mJ

Work mode: Used single or system mode

Display: OLED screen, 128x64 dot matrix, brightness adjustable

Measuring range: (200~750)HLG

Accuracy: ±12HLG

Repeatability: 12HLG

Measuring direction: 360°

Hardness scales: HLG, HB, HRB

Memory: 200 average value

Interface: USB

Data Output: Transfer data to PC

Operating voltage 3.3V

Operating temperature: 0~40°C

Humidity: ≤90%

Dimensions (mm): 254 × 50 × 40

Weight (g): 310

Main unit

Test block G

Mini USB cable

Charger

Cleaning brush

TIME certificate

Warranty card

Instruction manual

Datasheet
