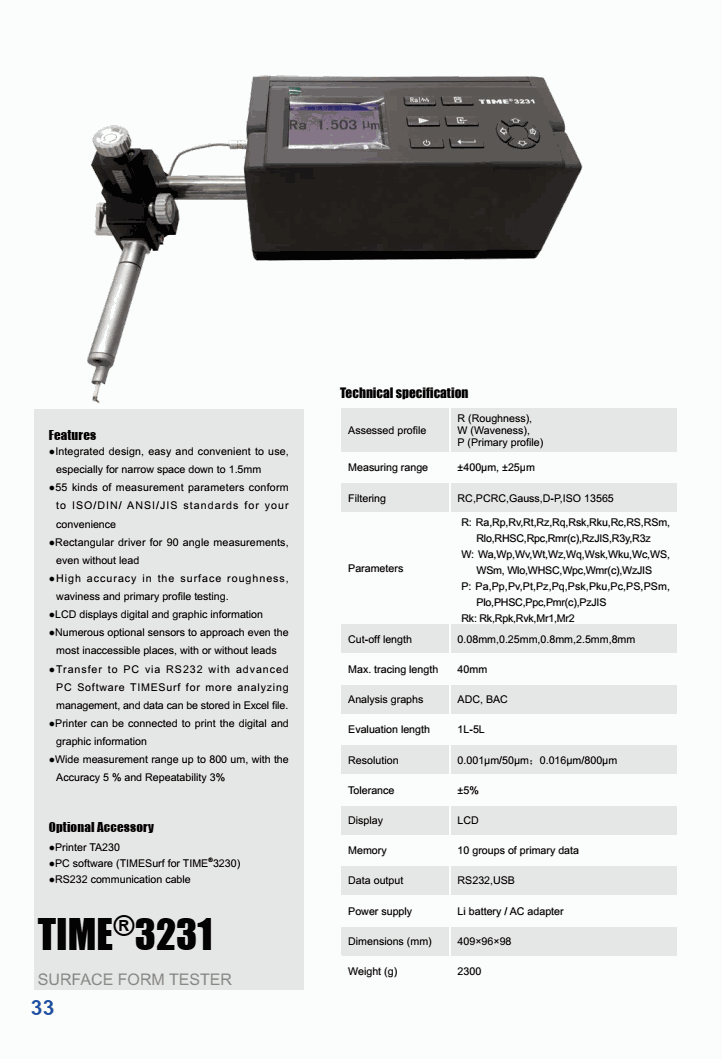

Assessed profile: R (Roughness), W (Waveness), P (Primary profile)
Measuring range: ±400µm, ±25µm
Filtering: RC, PCRC, Gauss, D-P, ISO 13565
Parameters
R: Ra, Rp, Rv, Rt, Rz, Rq, Rsk, Rku, Rc, RS, RSm, Rlo, RHSC, Rpc, Rmr(c), RzjIS, R3y, R3z
W: Wa, Wp, Wv, Wt, Wz, Wq, Wsk, Wku, Wc, WS, WSm, Wlo, WHSC, Wpc, Wmr(c), WzjIS
P: Pa, Pp, Pv, Pt, Pz, Pq, Psk, Pku, Pc, PS, PSm, Plo, PHSC, Ppc, Pmr(c), PzjIS Rk: Rk, Rpk, Rvk, Mr1, Mr2
Cut-off length: 0.08mm, 0.25mm, 0.8mm, 2.5mm, 8mm
Max. Tracing length: 40mm
Analysis graphs: ADC, BAC
Evaluation length: 1L-5L
Resolution: 0.001μm/50μm；0.016μm/800μm
Tolerance: ±5%
Display: LCD
Memory: 10 groups of primary data
Data output: RS232, USB
Power supply: Li battery/AC adapter
Dimensions (mm): 409×96×98
Weight (g): 2300
Optional Accessory
Printer TA230
PC software (TIMESurf for TIME®3230)
RS232 communication cable
