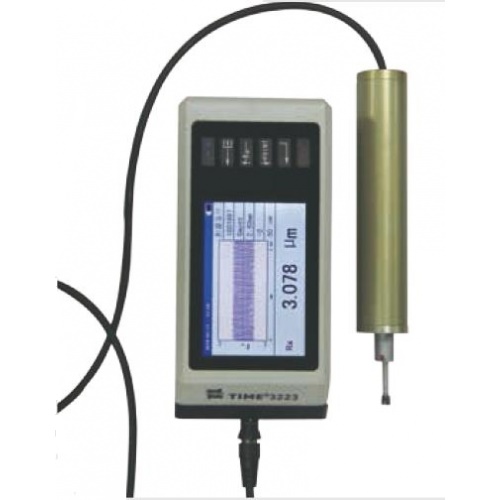

TIME 3223 Surface Roughness Tester (400 µm)

Test principle: Inductance type

Measuring range: 400 µm

Stylus tip radius: 5 µm

Stylus tip material: Diamond

Measuring force: 4 mn

Stylus tip angle: 90°

Radius of skid curvature: 45 mm

Maximum drive range: 19 mm

Measuring range: ±25 µm; ±200 µm

Resolution: 0.001 µm; 0.008 µm

Cut-off length: 0.08 mm, 0.25 mm, 0.8 mm, 2.5 mm

Evaluation length: 1L-5L (selectable)

Accuracy: ±10%

Standard Delivery

Main unit

Standard pickup

Driver

Charger

Standard sample

Protection sleeve

Feeler lever

TIME certificate

Warranty card

Optional Accessory

Printer TA230

Connecting cable

Dataview
