TIME 3202 Surface Roughness Tester

Roughness parameters: Ra, Rz, Ry, Rq, Rmax, Rv, R3z, RS, RSm, RSk, Rmr, Rpc, Rk, Rpk, Rvk, Mr1, Mr2

Assessed profiles: Roughness profile (R) Primary profile (P)

Measuring system: Metric, imperial

Display Resolution: 0.001 μ m

Data output: RS232

Pickup Measuring range: ±20μ m, ±40μ m, ±80μ m

Cutoff length (L): 0.25mm/0.8mm/2.5mm/Auto

Evaluation length: 1~5L (selectable)

Tracing length: 3-7L(selectable)

Digital filter: RC, PC-RC, Gauss, D-P

Max. Tracing length: 17.5mm/0.71inch

Min. Tracing length: 1.3mm/0.052inch

Pick-up: Standard pickup TS100, inductive, diamond stylus radius 5μm, angle of stylus 90°

Tolerance: ≤±10%

Repeatability: ≤6%

Power: Li-ion battery rechargeable

Dimensions (mm): 140×52×48

Weight (g): 440

Standard Delivery　

Main unit

TS100 standard pickup

Roughness test plate Ra

Charger

Protection nose

Steel support

Dataview

Communication cable

TIME certificate

Warranty card

Optional Accessory

TS110 pickup for curved surface

TS120 pickup for small holes

TS130 pickup for deep grooves

TS140 right-angled pickup

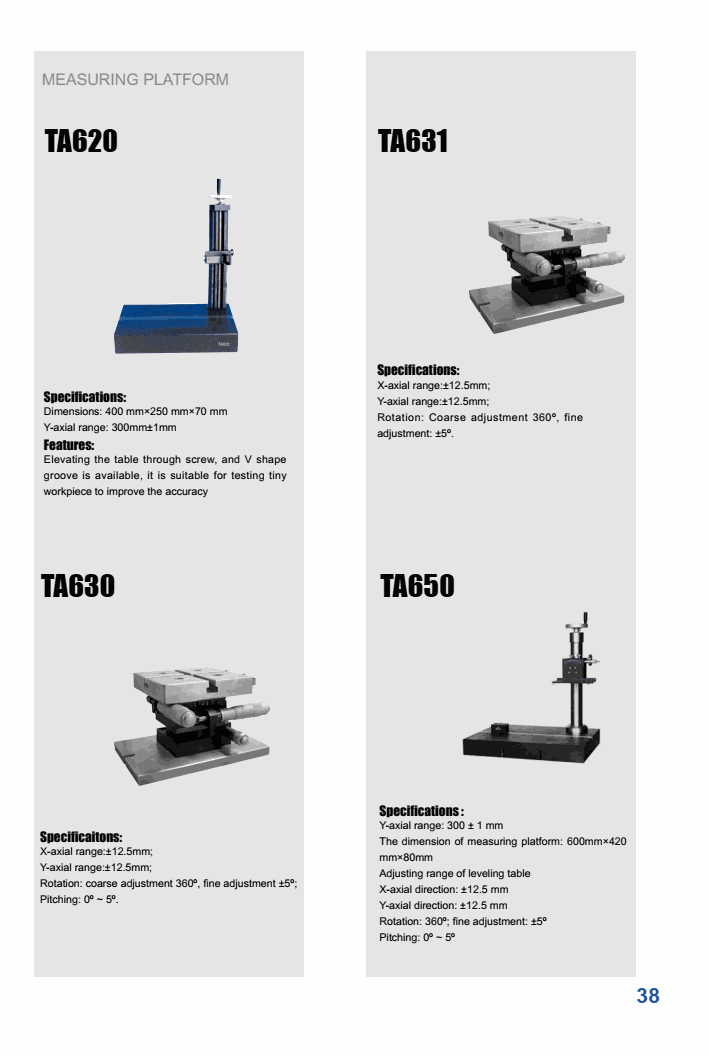

Measuring platform TA620

Leveling table TA630/TA631

Magnetic stand

Steel adapter (Φ8)

Steel adapter (L-attachment)

Printer TA230
