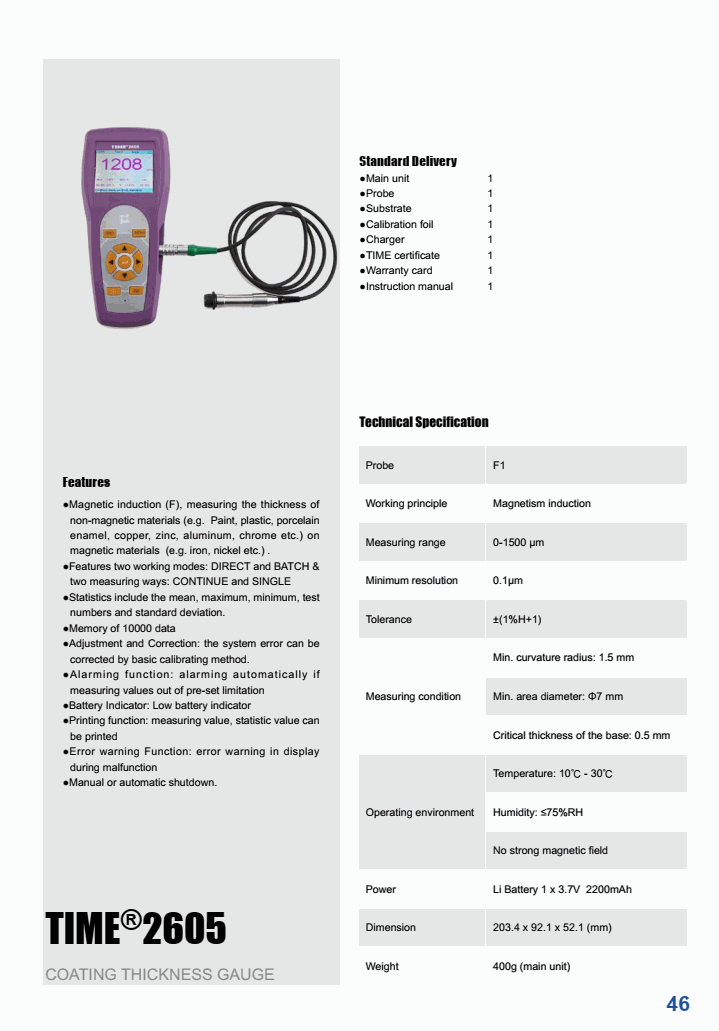

TIME 2605 Coating Thickness Gauge (0-1500 µm; 0,1 µm)

Specifications:

Probe: F1

Working principle: Magnetism induction

Measuring range: 0-1500 µm

Minimum resolution: 0.1µm

Tolerance: ±(1%H+1)

Measuring condition

Min. curvature radius: 1.5 mm

Min. area diameter: Φ7 mm

Critical thickness of the base: 0.5 mm

Operating environment

Temperature: 10℃ - 30℃

Humidity: ≤75%RH

No strong magnetic field

Power: Li Battery 1 x 3.7V 2200mAh

Dimension: 203.4 x 92.1 x 52.1 (mm)

Weight: 400g (main unit)

Standard Delivery

Main unit

Probe

Substrate

Calibration foil

Charger

TIME certificate

Warranty card

Instruction manual

Datasheet
