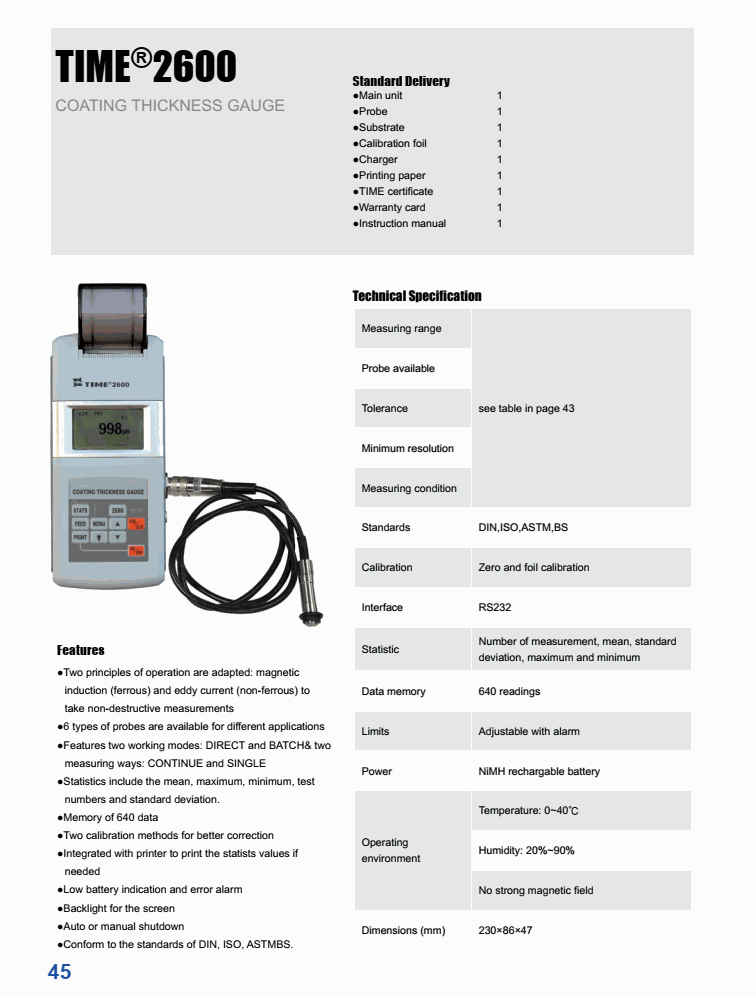

TIME 2600 Coating Thickness Gauge (0-1250 µm/0-40µm; 0.1µm)

Specifications:

Probe Types: F; N

Working principle: Magnetic induction; Eddy current

Measuring range: 0-1250 µm; 0-1250 µm, 0-40µm (for chrome plate on copper)

Minimum resolution: 0.1µm

Tolerance

Zero point calibration: ±(3%H+1) µm; ±(3%H+1.5) µm

H means the thickness of tested piece

Two points calibration ±{(1-3)%H+1}µm; ±{(1-3)%H+1.5}µm

H means the thickness of tested piece

Measuring condition

Min. curvature radius: Convexity 1.5 mm; Convexity 3 mm

Min. area diameter: Φ7 mm; Φ5 mm

Standards: DIn,ISO,ASTM,BS

Calibration: Zero and foil calibration

Interface: RS232

Statistic: Number of measurement, mean, standard deviation, maximum and minimum

Data memory: 640 readings

Limits: Adjustable with alarm

Power: niMH rechargable battery

Operating environment

Temperature: 0~40℃

Humidity: 20%~90%

No strong magnetic field

Dimensions (mm): 230×86×47

Standard Delivery

Main unit

Probe

Substrate

Calibration foil

Charger

Printing paper

TIME certificate

Warranty card

Instruction manual

Datasheet
