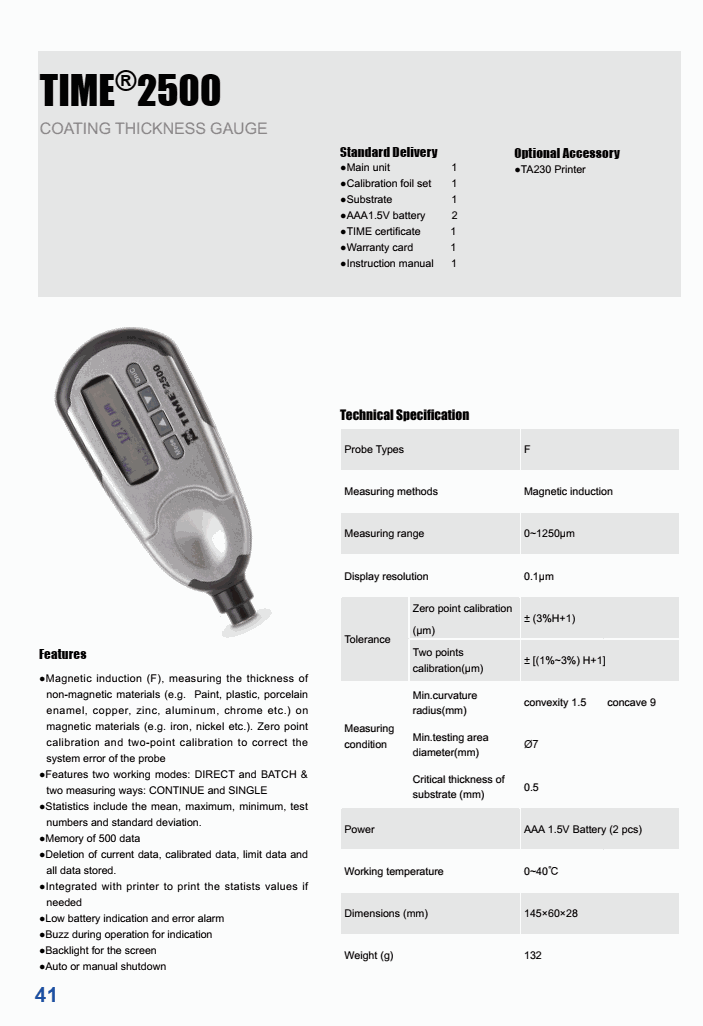

TIME 2500 Coating Thickness Gauge (0 ~ 1250μm; 0,1μm)

Specifications:

Probe Types: F

Measuring methods: Magnetic induction

Measuring range: 0~1250μm

Display resolution: 0.1μm

Tolerance

Zero point calibration (μm): ± (3%H+1)

Two points calibration(μm): ± [(1%~3%) H+1]

Measuring condition

Min. curvature radius(mm): convexity 1.5 concave 9

Min. testing area diameter(mm): Ø7

Critical thickness of substrate (mm): 0.5

Power: AAA 1.5V Battery (2 pcs)

Working temperature: 0~40℃

Dimensions (mm): 145×60×28

Weight (g): 132

Standard Delivery

Main unit

Calibration foil set

Substrate

2 x AAA1.5V battery

TIME certificate

Warranty card

Optional Accessory

TA230 Printer

Datasheet
