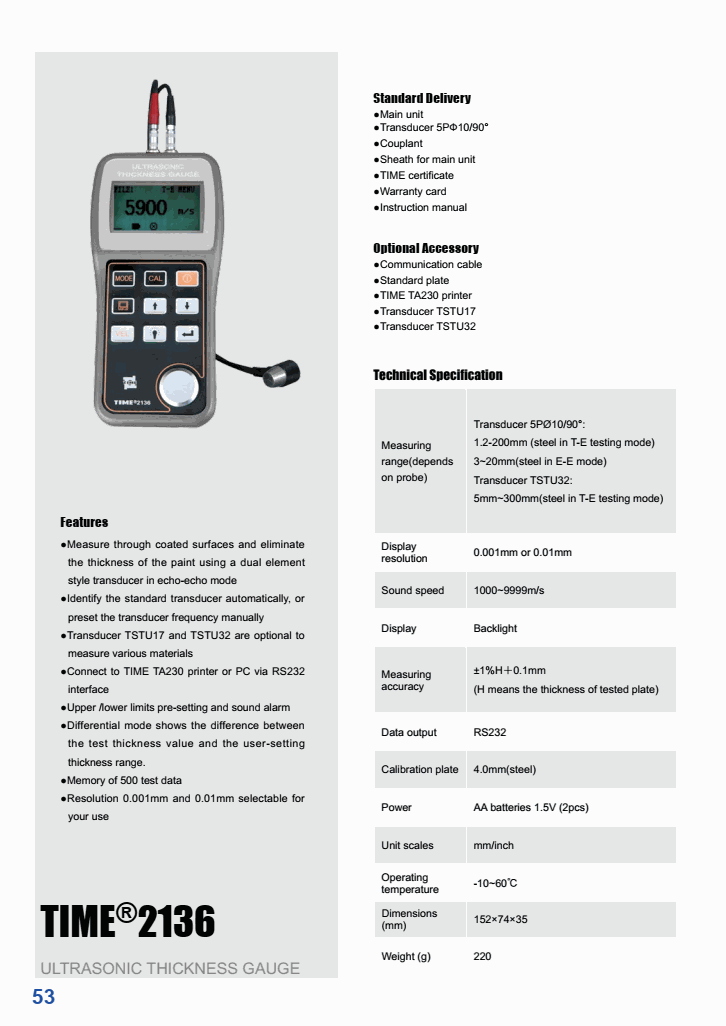

TIME 2136 Ultrasonic Thickness Gauge

Specifications:

Measuring range(depends on probe):

Transducer 5PØ10/90°: 1.2-200mm (steel in T-E testing mode) 3~20mm(steel in E-E mode)

Transducer TSTU32: 5mm~300mm(steel in T-E testing mode)

Display resolution: 0.001mm or 0.01mm

Sound speed: 1000~9999m/s

Display: Backlight

Measuring accuracy: ±1%H＋0.1mm (H means the thickness of tested plate)

Data output: RS232

Calibration plate: 4.0mm(steel)

Power: AA batteries 1.5V (2pcs)

Unit scales: mm/inch

Operating temperature: -10~60℃

Dimensions (mm): 152×74×35

Weight: 220g

Standard Delivery

Main unit

Transducer 5PФ10

Couplant

Sheath for main unit

TIME certificate

Warranty card

Optional Accessory

Communication cable

Standard plate

TIME TA230 printer

Transducer TSTU32
