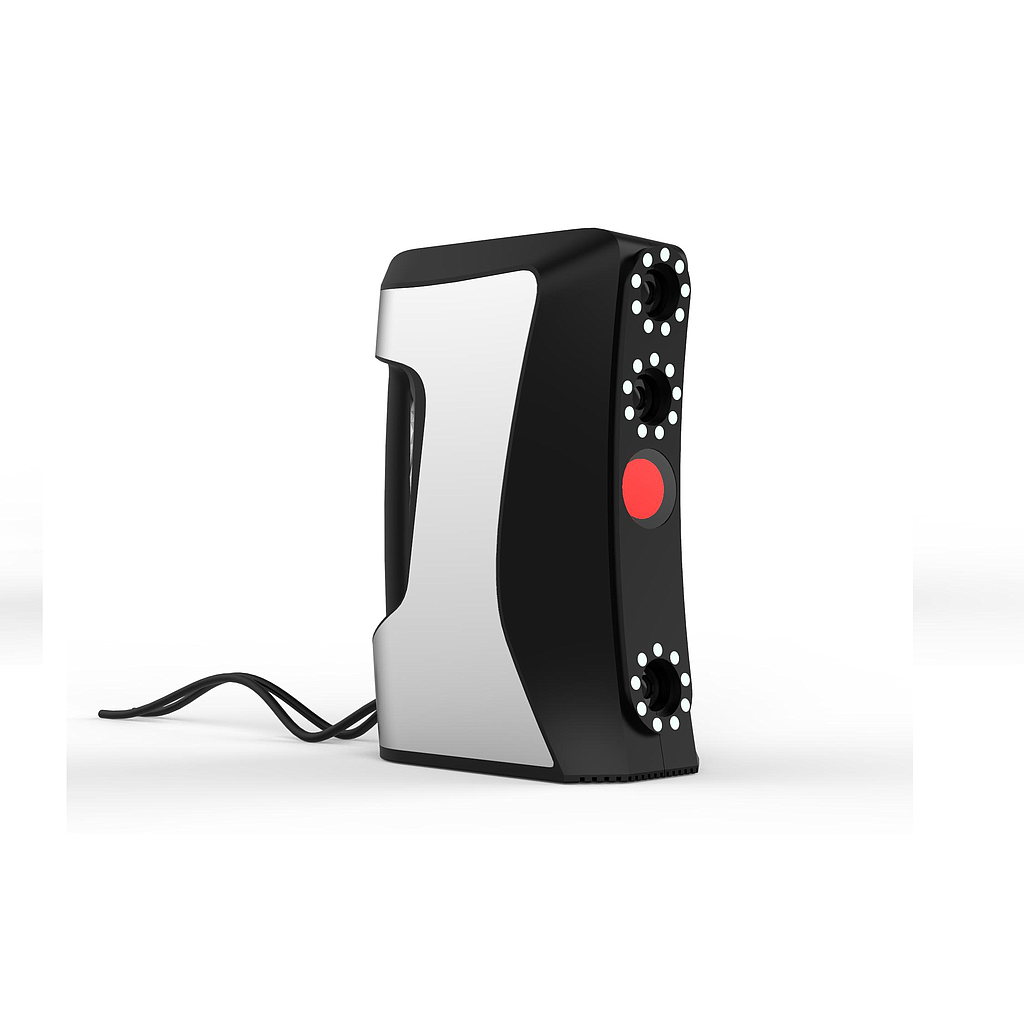

Thunk3D Archer S Handheld 3D Scanner (0.05mm; 3.000.000 points/s)

Camera: Monochrome, 1.3mpx2 + Full color, 1.3mpx1

Lens: 16mm/5mp

Raster: DLP 1280x1080

Resolution: 0.1mm

Light Area: 30x24cm; 12x10cm

Frame accuracy: 0.05mm

Scan speed: 3.000.000 points/s, 12-15F/S

Scan volume: 5-100cm

Texture: Yes

Alignment: Feature align (support group register), mix align, mark align, Frame align

Data format: ASC/STL/PLY

Photogrammetric: No

Advantages: Color restore for regular display

Public API: USB 3.0; C++ interface

PC require: Nvidia as main GPU; Win7 (64) and higher

Certification: CE/FCC/WEEE/CNAS

Software: Fill holes; Decimate; Smoothen

After process (option):

CAD/Scan importing;

Point process (Register/ Merge, Noise Delete/Noise Filtering)

Polygon process (Smooth/ Decimate/ Subdivide/ Fill holes/ Reomove Markers/ Scale)

Polygon Healing (Abnormal/ Cross/etc)

Datasheet
