THORLABS TLX3 Fiber-Coupled, Rack-Mounted Tunable O-Band Laser Source (1250 - 1350 nm)

Wavelength Range (Typ.): 1250 - 1350 nm

Output Power(b): 10 - 40 mW

Power Stability: ±0.02 dB

Power Repeatability: ±0.05 dB

Wavelength Accuracy: ±50 pm

Wavelength Stability: ±30 pm

Wavelength Repeatability: ±20 pm

Tuning Resolution: 10 pm

ASE Ratio(c): >60 dB

RIN Noise: -145 dB/Hz

Linewidth: <100 kHz

Tuning Time (Manual Mode)(d):100 ms

Transition Time (Step Mode)(e):300 ms

Dwell Time (Step Mode)(f): 100 ms - 60 s

Sweep Speed Range(g): 50 - 400 nm/s

Output Connector: FC/APC (PM)

Output Fiberh: Single-Mode PM

Polarization Extinction Ratio: >15 dB

Operating Conditions: 10 - 35 °C, 5 - 85% Relative Humidity

Housing Sizei: 17.0" x 15.9" x 3.4" (432 mm x 404 mm x 86 mm)

Supply Voltage: 100 - 250 VAC, 50/60 Hz

Trigger Out Levels (Digital): 0 - 4.1 V

Clock Out Levels (Digital): 0 - 3.3 V

(a) All specifications are typical at 25 °C after 1 hour warm-up time.

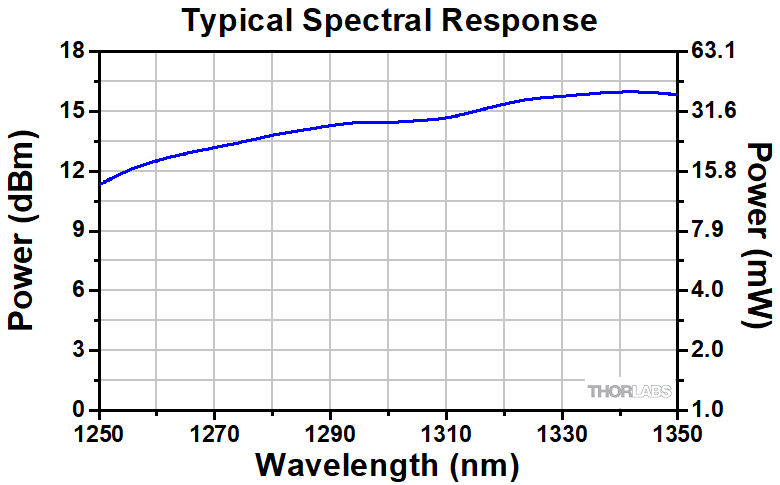

(b) This depends on the wavelength; see the Typical Spectral Response graph to the right.

(c) 0.1 nm Bandwidth, 1 nm from Center

(d) Between Any Two Wavelengths

(e) In Stepped Mode

(f) Does Not Include Transition Time

(g) Continuous Sweep Mode

(h) The slow-axis of the fiber is aligned to the connector key.

(i) 2RU Rack Mount Chassis
