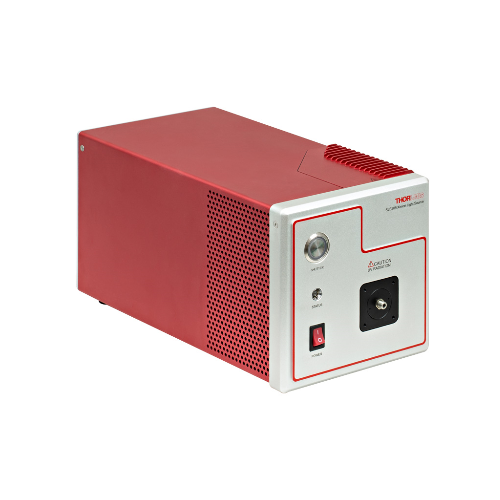

THORLABS SLS205 Fiber-Coupled Xenon Light Source (75 W)

Wavelength Range: 240 - 1200 nm

Bulb Electrical Power: 75 W

Included Output Fiber: M111L01 Patch Cable

Ø105 µm, 0.22 NA, SMA905 Connectors

Fiber-Coupled Output Power: 5 mW (Typical)

Free-Space Output Power: 290 mW (Typical)

Fiber-Coupled Color Temperature: 5400 K (Typical)

Free-Space Color Temperature: 5800 K (Typical)

Output Power Drift: 0.12% Per Hour (Typical)

0.1% Per °C (Typical)

Output Power Stability: <0.5%

Bulb Lifetime: 2000 h

Bulb Arc Gap: 1.3 mm

Shutter Switch Time: 5 ms

Shutter Repetition Rate (Max): 10 Hz (Burst)

Bulb Power Monitor: 0 - 5 V Analog

External Shutter Control: 0 - 5 V CMOS

High: 3.8 - 5 V, Low: 0 - 1.5 V

Power Supply: 100 - 240 VAC, 50 - 60 Hz

Operating Temperature: 0 - 45 °C

Storage Temperature: -15 - 70 °C

(L x W x H): 325.6 mm x 162.5 mm x 162.8 mm (12.82" x 6.40" x 6.41")

Manual
