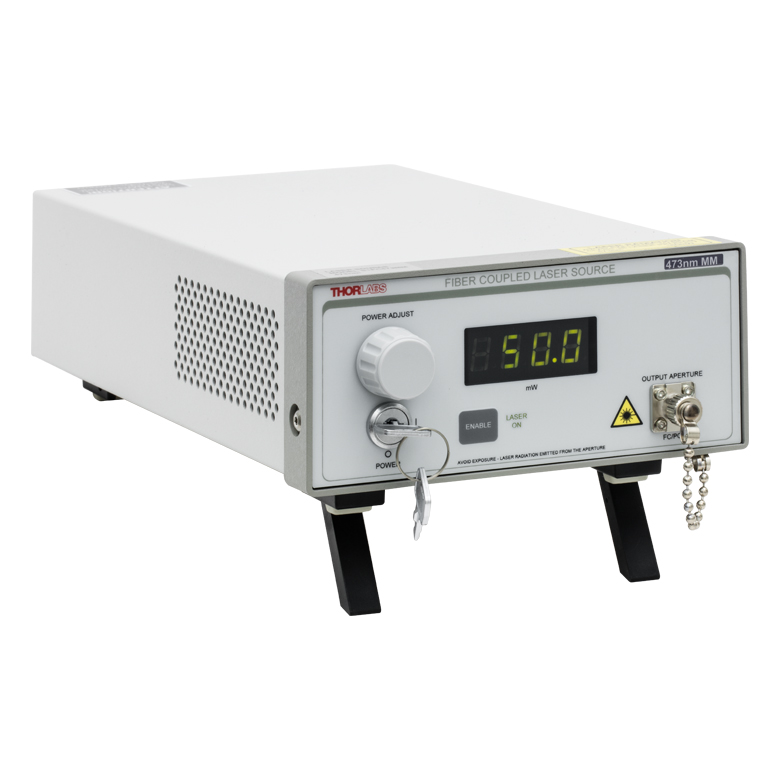

THORLABS S1FC473MM Multimode Source (473 nm)

Wavelength: 473 nm

Max Output Power (*): 50 mW

Stability: 15 min: ±0.05 dB, 24 hr: ±0.1 dB (After 1 hr Warm-Up at 25 ± 10 °C Ambient)

Display Accuracy: ±10 %

Setpoint Resolution: 0.1 mW

Adjustment Range: ~0 mW to Full Power

AC Input: 115 / 230 VAC (Switch Selectable) 50 - 60 Hz

Modulation Input: 0 - 5 V = 0 - Full Power, DC or Sine Wave Input Only

Modulation Bandwidth:

- 5 kHz Full Depth of Modulation

- 30 kHz Small Signal Modulation

Fiber: FG105UCA

Environmental:

- Operating Temperature: 15 to 35°C

- Storage Temperature: 0 to 50°C

(*): Output power ranges from 0 - 50 mW. Due to variations between laser diodes, maximum output power may be higher
