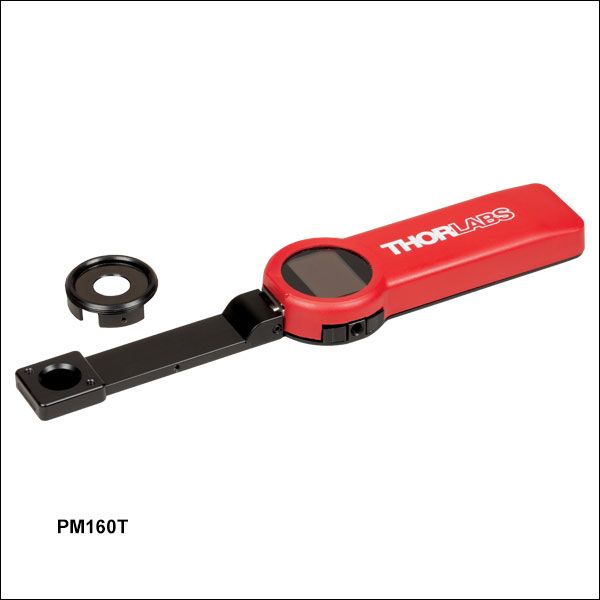

THORLABS PM160T Wireless Power Meter with Thermal Sensor (190 nm to 10.6 µm, 100 µW to 2 W)

Wavelength Range: 190 nm - 10.6 µm

Optical Power Measurement Range: 1100 µW - 2 W

Max Average Power Density(b): 500 W/cm²

Optical Power Resolution: 10 µW

Measurement Uncertainty: ±3% (1064 nm) ±5% (Entire Range)

Sensor Coating: Black Broadband

Distance to Sensor from Top Surface of Housing: 2.6 mm

Sensor Aperture: Ø10 mm (Ø0.39")

(a) For the complete list of specifications, please see the manual.

(b) For continuous wave (CW) sources, this value is equivalent to the peak power density, while for pulsed laser sources this value is calculated from the time-averaged power and beam profile.
