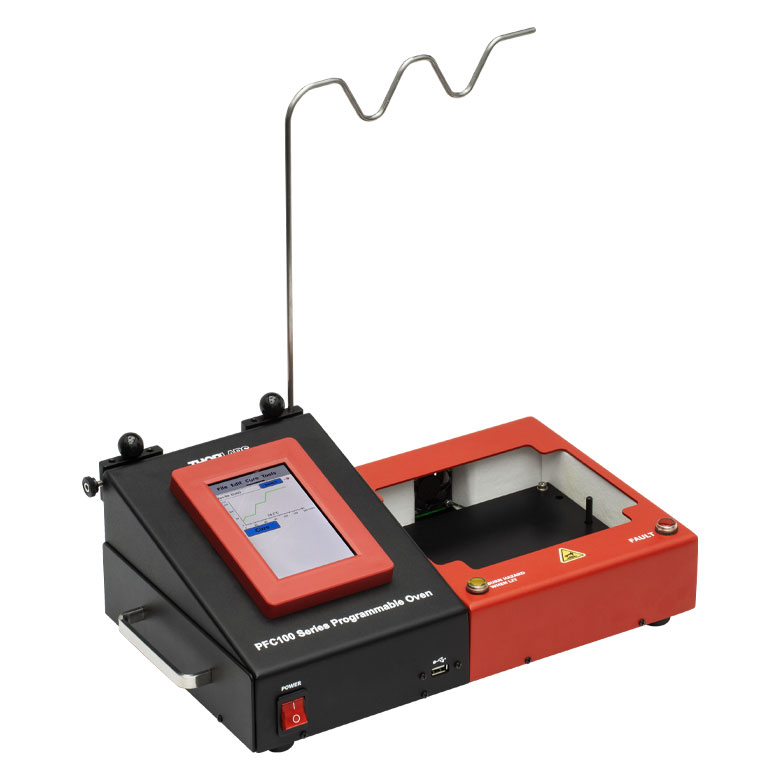

THORLABS PFC112 Programmable Fiber Connector Epoxy Curing Ovens (Single Bay, 220 VAC)

Compatible Connectors: FC/PC, FC/APC, SMA, ST®(a)/PC, SC/PC

Oven Bays: One

Connector Capacity: 36

Max Temperature: 150°C (302°F)

Temperature Accuracy: ±1.5 °C

Power Consumption: 250 W (Single Bay)

Max # of Curing Profiles: 99

Max # of Steps: 50

Temperature Logging: 1 min. Increment CSV Format Accessible Through USB

Operating Conditions: 15 to 30 °C, 0 - 85% RH (Non-Condensing)

Storage Conditions: -40 to 80 °C, 0 - 95% RH (Non-Condensing)

Power Source: 210-240 VAC @ 47-63 Hz

Dimensions (W × H × D): 16.96" x 15.10" x 9.72" (430.7 mm x 383.6 mm x 247.0 mm)

Mass (Weight): 7 kg (15 lbs)

(a) ST® is a registered trademark of Lucent Technologies, Inc.
