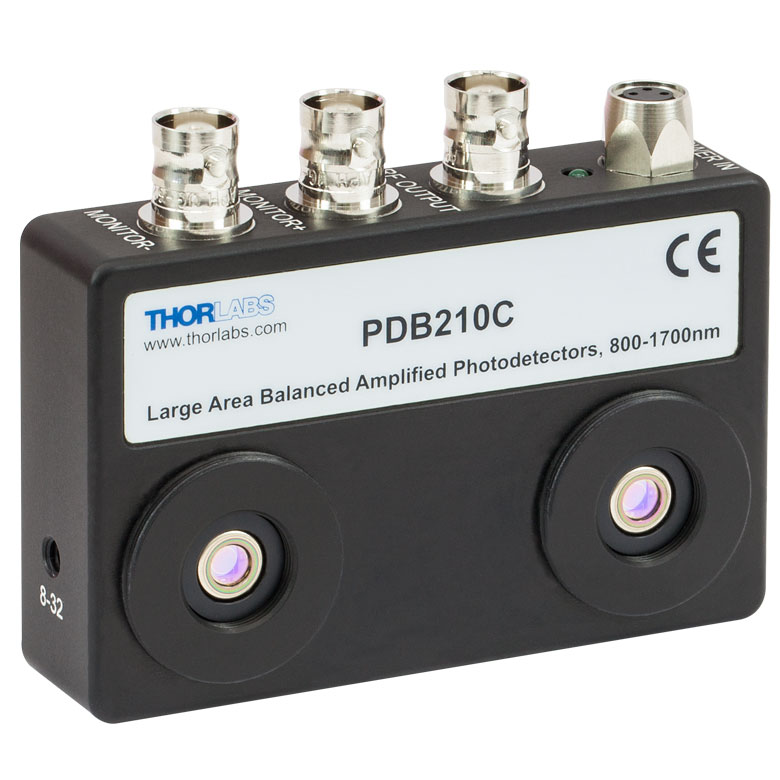

THORLABS PDB210C Free-Space Balanced Amplified Photodetectors (800-1700 nm, 8-32 Taps)

Detector Type: InGaAs/PIN

Wavelength Range: 800 - 1700 nm

Typical Maximum Responsivity: 1.0 A/W @ 1550 nm

Active Detector Diameter: 3 mm

Bandwidth (3 dB): DC - 1 MHz

Common Mode Rejection Ratio: 30 dB (Typical)

Transimpedance Gain: High Z Load: 500 x 10^3 V/A 50 Ω Load: 175 x 10^3 V/A

Conversion Gain RF-Output: High Z Load: 500 x 10^3 V/W 50 Ω Load: 175 x 10^3 V/W

CW Saturation Power RF-Output: 20 µW @ 1550 nm

Voltage Swing RF-Output: High Z Load: 10 V (Max) 50 Ω Load: 3.5 V (Max)

Conversion Gain Monitor Outputs: High Z Load: 10 V/mW 50 Ω Load: 1.5 V/mW @ 1550 nm

Voltage Swing Monitor Outputs (Max): High Z Load: 10 V (Max) 50 Ω Load: 1.5 V (Max)

Minimum NEP: 16 pW/√Hz (DC - 1 MHz)

Optical Inputs: Free Space

Photodiode Damage Threshold: 20 mW

Electrical Outputs: BNC, 100 Ω

RF-Output Coupling: DC (AC-Coupling Available upon Request)

Operating Temperature Range(a): 0 to 40 °C

Storage Temperature Range: -40 to 70 °C

Dimensionsb (W x H x L): 83.8 mm x 65.3 mm x 21.1 mm (3.30" x 2.57" x 0.83")

Weight: 0.15 kg (w/o Power Supply)

Included Power Supply(c): ±12 V @ 250 mA (100/120/230 VAC, 50 - 60 Hz, Switchable)

(a) Non-Condensing

(b) Without Connectors

(c) A replacement power supply is available below.

(d) All technical data are valid at 23 ± 5°C and 45 ± 15% relative humidity (non-condensing).
