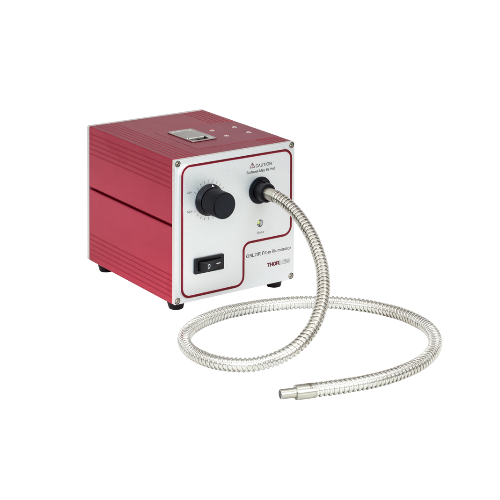

THORLABS OSL2IR High-Intensity Fiber Light Source (3.8 W)

Power at Fiber Tip: 3.8 W at Maximum Bulb Intensity

Color Temperature: 3200 K at Maximum Bulb Intensity

Operating Wavelength Range: 400 – 1750 nm (Typical)

Color Rendering Index: 90%

Intensity Adjustment Range: 0 to 100%

Time to Full Brightness: 4s Typical, 7s Maximum

Output Power Stability: ±0.8% over 8 Hours

Lamp Lifetime: 200 Hours to 50% Brightness

Input Voltage: 100 – 120 VAC; 50/60 Hz

200 – 240 VAC; 50/60 Hz

Fuse Type: 3 A, 250 V, 5 x 20 mm

Power Consumption: 200 W at Maximum Bulb Intensity

Operating Temperature: -20 to 40°C (-4 to 104°F)

Humidity Range: 0 to 80%, Non-Condensing

Weight: 2.9 lbs (1.3 kg)
