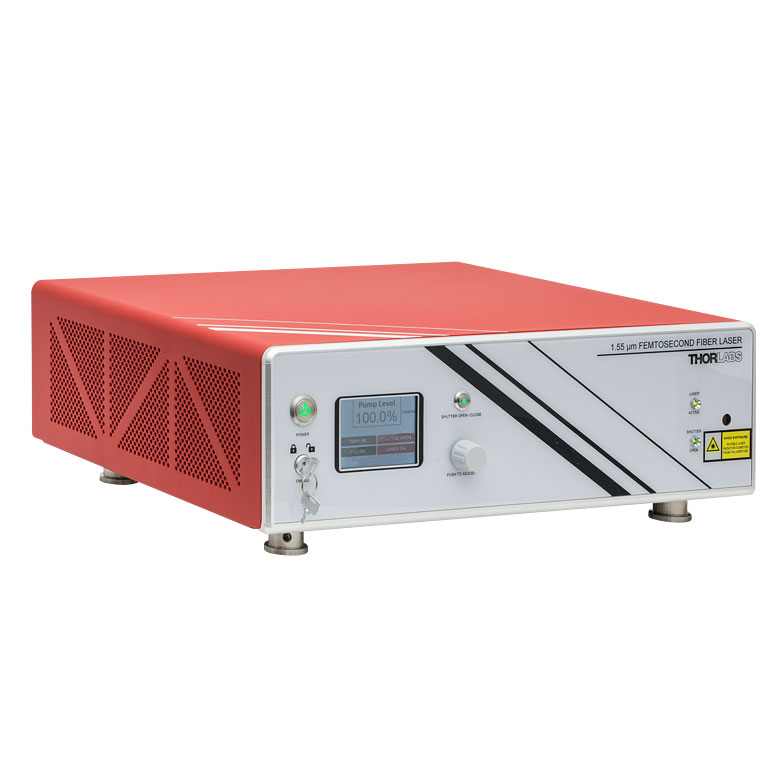

THORLABS FSL1550 Femtosecond Fiber Laser (1.55 µm)

Center Wavelength: 1560 nm ± 30 nm

Pulse Width (FWHM): <40 fs (Typical)

<50 fs (Max)

Peak Power: >60 kW

Output Power: >500 mW (Average)

Repetition Rate: 100 MHz (Nominal)

Pulse Energy: >5 nJ

Polarization Extinction Ratio: >15 dB

Beam Size: Ø2 mm (Nominal)

Output Power Stability: <0.4% / °C

Dimensions (L x W x H): 403.6 mm x 432.0 mm x 147.3 mm (15.89" x 17.01" x 5.80")
