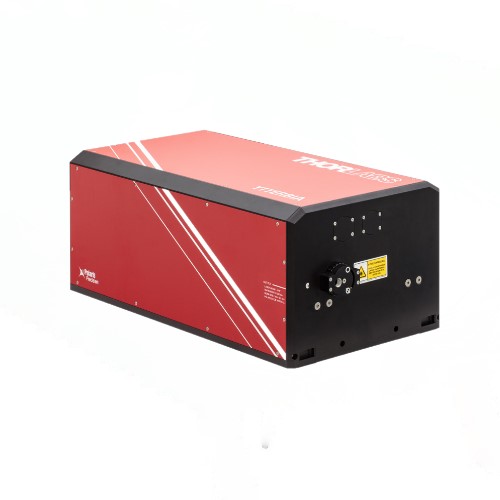

THORLABS FSL1030X1 Ytterbium Femtosecond Fiber Laser

Center Wavelength: 1035 nm ± 5 nm

User Tunable Repetition Rate: 1 – 11 MHz

Pulse Duration (FWHM): <220 fs (Typical)

<250 fs (Max)

Temporal Strehl Ratioc: >0.90 (Typical)

>0.85 (Min)

Pulse Energy from 1 - 5 MHz: 3 µJ

Average Power at Max Rep Rate: >20 W (Min)

Mode Field Diameter (1/e² ): 2.0 – 2.5 mm (Typical)

Mode Ellipticity: >0.8 (Typical)

Beam Quality (M²): <1.15 (Typical)

<1.2 (Max)

Polarization Extinction Ratio: >200:1

Power Stability: <1% RMS over 12 hours

Polarization: Linear, Vertical

Pointing Stability: <10 µrad/˚C (Typical)

(L x W x H): 569 mm x 320 mm x 238 mm (22.4" x 12.6" x 9.4")
