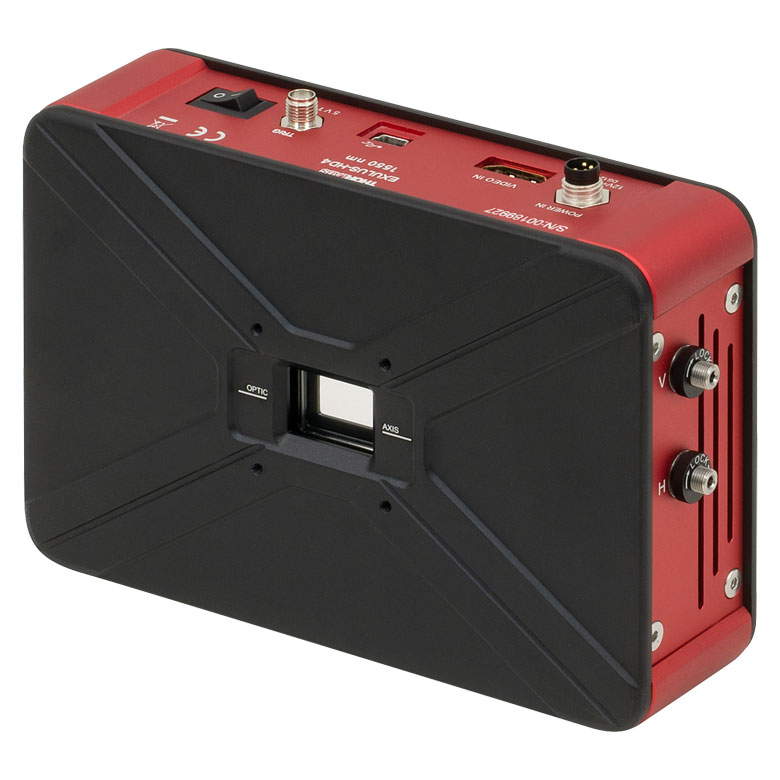

Key Specifications(a):
Operating Wavelength: 1550 nm
Panel Resolution: 1920 x 1200 (WUXGA)
Fill Factor: >92%
Panel Active Area: 15.42 mm x 9.66 mm
Pixel Pitch: 8 µm
Phase / Retardance Range(b): 2π at 1550 nm
Frame Rate: 60 Hz
Fluctuation/ Flickering (RMS)(c): <0.15%
Output Trigger: Yes (SMA)
(a) Complete specifications may be found on the Manual.
(b) Angles of incidence other than 0° will result in phase shifts that differ from the programmed pattern. Angles of up to 10° are possible without significantly affecting performance.
(c) Fluctuation / Flickering is the phase fluctuation as the percentage of the entire phase range and is dependent on the current phase setting. The value stated is the maximum fluctuation and typically occurs at half of the phase range
