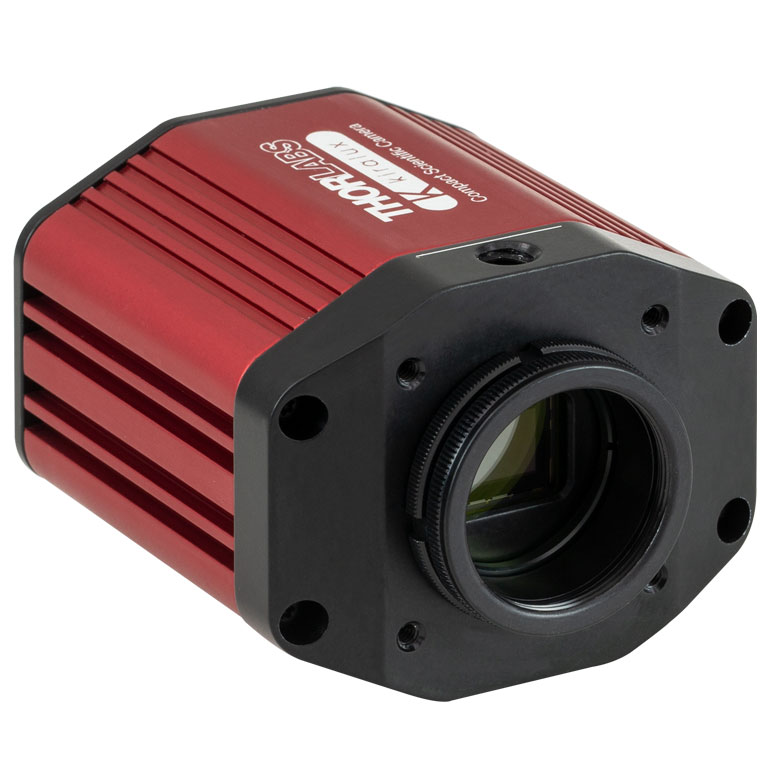

THORLABS CS235MU Kiralux CMOS Compact Scientific Cameras (Monochrome CMOS, Passively Cooled)

Sensor Type: Monochrome CMOS

Effective Number of Pixels: 920 x 1200 (H x V)

Imaging Area: 11.251 mm x 7.032 mm (H x V)

Pixel Size: 5.86 µm x 5.86 µm

Optical Format(a): 1/1.2" (13.3 mm Diagonal)

Max Frame Rate: 39.7 fps (Full Sensor)

ADC(b) Resolution: 12 Bits

Sensor Shutter Type: Global

Read Noise: <7.0 e- RMS

Full Well Capacity: ≥30 000 e-

Exposure Time: 0.034 ms to 15167 ms in ~0.020 ms Increments

Vertical and Horizontal Digital Binning(c): 1 x 1 to 16 x 16

Region of Interest (ROI): 92 x 4 Pixels (d) to 1920 x 1200 Pixels, Rectangular

Dynamic Range: Up to 75 dB

Peak Quantum Efficiency: 78% at 500 nm

Removable Optic: Window, Ravg < 0.5% per Surface (400 - 700 nm)

USB Power Consumption: 3.25 W @ 39.7 fps (Full Sensor ROI)

Ambient Operating Temperature:10 °C to 40 °C (Non-Condensing)

Storage Temperature: 0 °C to 55 °C

(a) Click the links for a visual comparison of all the sensor sizes.

(b) ADC = Analog-to-Digital Converter

(c) For color cameras, binning greater than 1 x 1 is only available when the camera is operating in unprocessed mode (monochrome).

(d) When Binning at 1 x 1
