Sensor Type: Color CMOS
Effective Number of Pixels: 920 x 1200 (H x V)
Imaging Area: 11.251 mm x 7.032 mm (H x V)
Pixel Size: 5.86 µm x 5.86 µm
Optical Format(a): 1/1.2" (13.3 mm Diagonal)
Max Frame Rate: 39.7 fps (Full Sensor)
ADC(b) Resolution: 12 Bits
Sensor Shutter Type: Global
Read Noise: <7.0 e- RMS
Full Well Capacity: ≥30 000 e-
Exposure Time: 0.034 ms to 15167 ms in ~0.020 ms Increments
Vertical and Horizontal Digital Binning(c): 1 x 1 to 16 x 16
Region of Interest (ROI): 92 x 4 Pixels (d) to 1920 x 1200 Pixels, Rectangular
Dynamic Range: Up to 75 dB

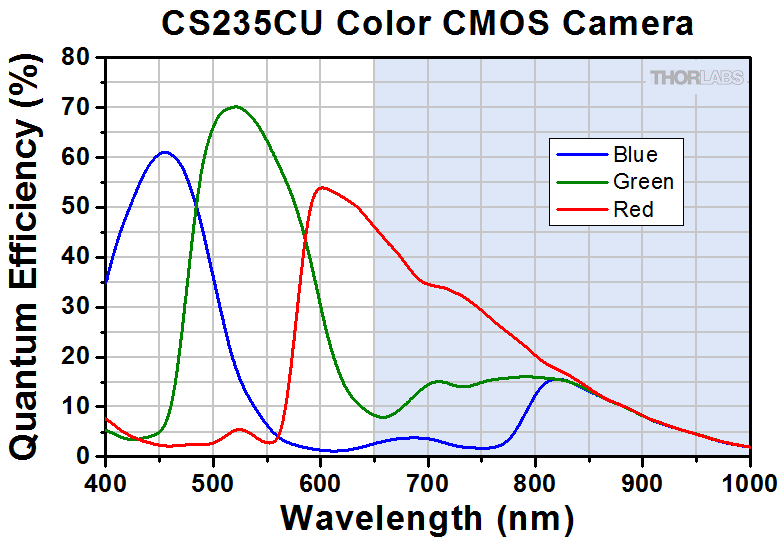

Peak Quantum Efficiency: See Responsivity Plot
Removable Optic: Window, IR Blocking Filter
USB Power Consumption: 3.25 W @ 39.7 fps (Full Sensor ROI)
Ambient Operating Temperature: 10 °C to 40 °C (Non-Condensing)
Storage Temperature: 0 °C to 55 °C
(a) Click the links for a visual comparison of all the sensor sizes.
(b) ADC = Analog-to-Digital Converter
(c) For color cameras, binning greater than 1 x 1 is only available when the camera is operating in unprocessed mode (monochrome).
(d) When Binning at 1 x 1
