Sensor Type: Monochrome CMOS
Hardware Trigger/Strobe: Yes (a)
Peak Quantum Efficiency: 69% at 575 nm
Removable Optic: AR-Coated Window, Ravg < 0.5% per Surface (400 - 700 nm)
Vertical and Horizontal Digital Binning: 1 x 1 to 16 x 16

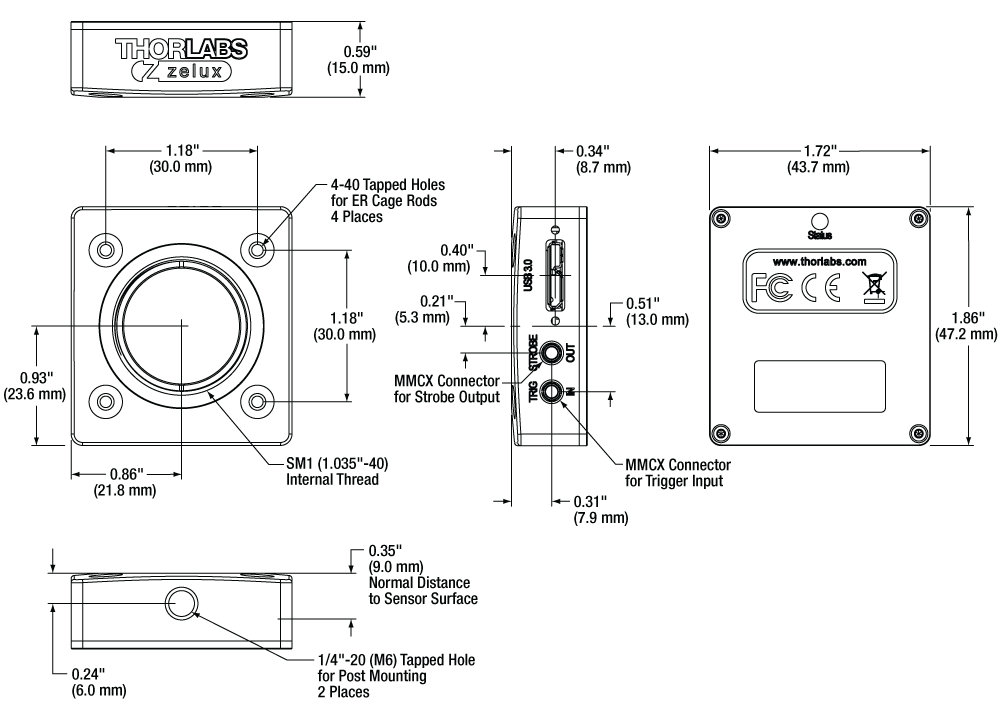

Mounting Features:
- Imperial: Two 1/4"-20 Taps for Post Mounting, 30 mm Cage Compatible
- Taps are on Adjacent Sides of the Housing
(a) Two MMCX-to-BNC cables (Item # CA3339) are included with versions that have external hardware triggers.
(b) Please see the graph below and to the right for more information.
(c) Binning >1 x 1 is only available when the camera is operated in unprocessed mode (monochrome).
Common Specifications
Number of Active Pixels(Horizontal x Vertical): 1440 x 1080
Imaging Area(Horizontal x Vertical): 4.968 mm x 3.726 mm
Pixel Size: 3.45 µm x 3.45 µm
Optical Format: 1/2.9" (6.2 mm Diagonal)
Max Frame Rate: See in the manual
ADC(a) Resolution: 10 Bits
Sensor Shutter Type: Global
Read Noise: <4.0 e- RMS
Full Well Capacity: ≥11 000 e-
Exposure Time: 0.040 ms to 26843 ms in ~0.025 ms Increments
Region of Interest (ROI): 80 x 4 Pixels (b) to 1440 x 1080 Pixels, Rectangular
Dynamic Range: Up to 69 dB
Lens Mount: Internal SM1 (1.035"-40) Threading; SM1A10 CS-Mount Adapter and SM1A10Z C-Mount Adapter Sold Below
USB Power Consumption: 1.17 W
Ambient Operating Temperature: 10 °C to 40 °C (Non-Condensing)
Storage Temperature: 0 °C to 55 °C
(a) ADC = Analog-to-Digital Converter
(b) When Binning at 1 x 1
