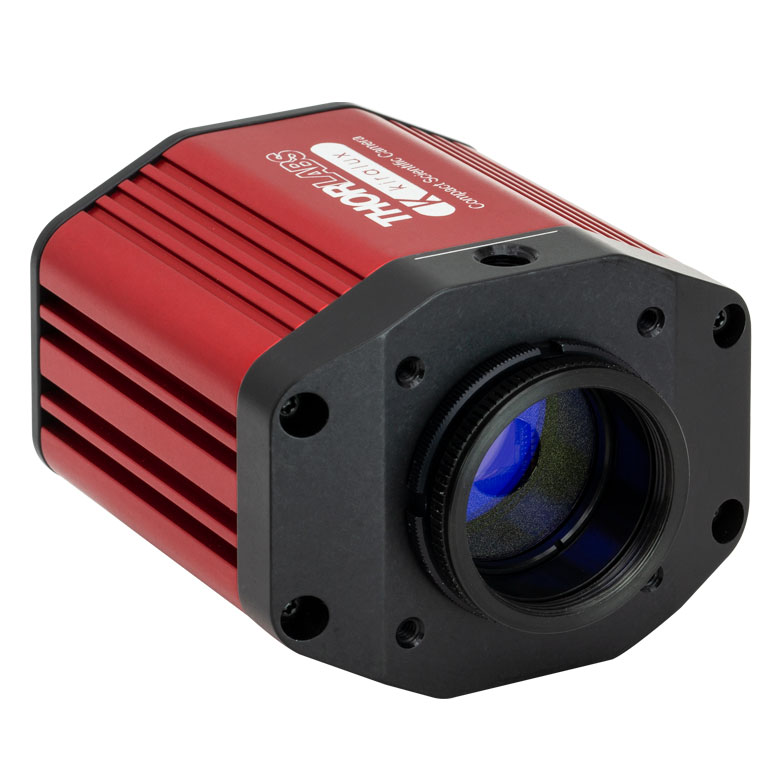

THORLABS CS135MU Kiralux CMOS Compact Scientific Cameras (Monochrome CMOS, Passively Cooled)

Sensor Type: Monochrome CMOS

Effective Number of Pixels: 1280 x 1024 (H x V)

Imaging Area: 6.144 mm x 4.915 mm (H x V)

Pixel Size: 4.8 µm x 4.8 µm

Optical Format(a): 1/2" (7.76 mm Diagonal)

Max Frame Rate: 165.5 fps (Full Sensor)

ADC(b) Resolution: 10 Bits

Sensor Shutter Type: Global

Read Noise: <7.0 e- RMS

Full Well Capacity: ≥10 000 e-

Exposure Time: 0.100 ms to 59269 ms in 0.001 ms Increments

Vertical and Horizontal Digital Binning(c): 1 x 1 to 5 x 5

Region of Interest (ROI): 16 x 2 Pixels(d )to 1280 x 1024 Pixels, Rectangular

Dynamic Range: >60 dB

Peak Quantum Efficiency: 59% at 550 nm

Removable Optic: Window, Ravg < 0.5% per Surface (400 - 700 nm)

USB Power Consumption: 3.85 W @ 165.5 fps (Full Sensor ROI)

Ambient Operating Temperature:10 °C to 40 °C (Non-Condensing)

Storage Temperature: 0 °C to 55 °C

(a) Click the links for a visual comparison of all the sensor sizes.

(b) ADC = Analog-to-Digital Converter

(c) For color cameras, binning greater than 1 x 1 is only available when the camera is operating in unprocessed mode (monochrome).

(d) When Binning at 1 x 1
