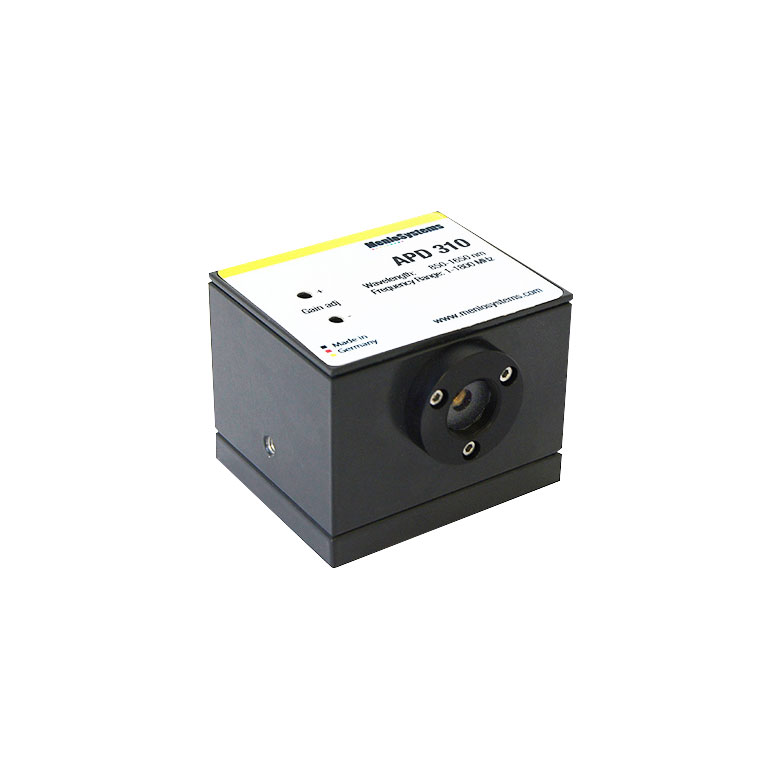

THORLABS APD310 High-Speed Avalanche Photodetector (850-1650nm; 1-1800MHz; M4 Tap)

Key Specifications(a)

Detector Type: InGaAs APD

Wavelength Range: 850 - 1650 nm

Frequency Range: 1 MHz - 1800 MHz

3 dB Bandwidth: 5 MHz - 1000 MHz

Active Area Diameter: 0.04 mm

Conversion Gain (Max): 2.5 × 104 V/W @ 1 GHz, 1500 nm

NEP (Calculated)(b): 13.3 pW/√Hz

M Factor: 30

Typ. Max Responsivity: 0.9 A/W @ 1550 nm

(a) For a complete list of specifications and responsivity graphs, please see the manual

(b) For more information on how NEP is calculated, please see Thorlabs' Noise Equivalent Power White Paper.
