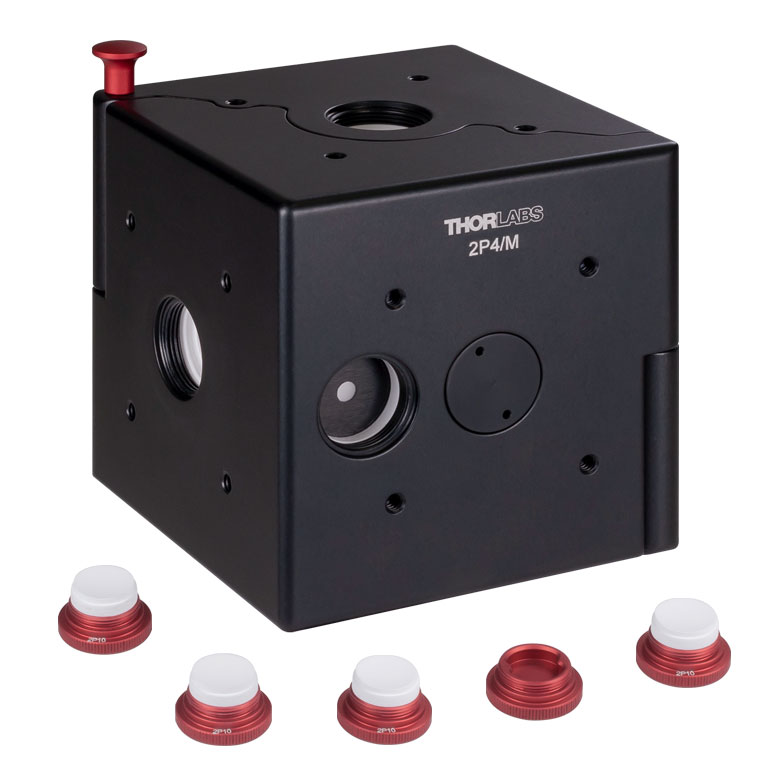

THORLABS 2P4/M Integrating sphere (4 Input Ports, M4 Tapped Mounting Hole)

Input Ports: Three: Four: Front, Side, Rear, and Top

Sphere Diameter: 50 mm

Input Port Diameter: 11.5 mm (0.45")

Detector Port: Ø3 mm with SM05 (0.535"-40) Thread

Typical Reflectance: >94% at 250 nm - 2500 nm. ~99% at 350 nm - 1500 nm

Wavelength Range: 250 nm - 2500 nm

Operating Temperature: -20 °C to 60 °C

Operating Humidity: 5% to 95%

Laser Damage Threshold: Pulsed: 7J/cm2. CW: 2 kW/cm2

Weight: 350 g

Dimensions: 63.0 mm x 63.0 mm x 77.0 mm (2.48" x 2.48" x 3.03")
