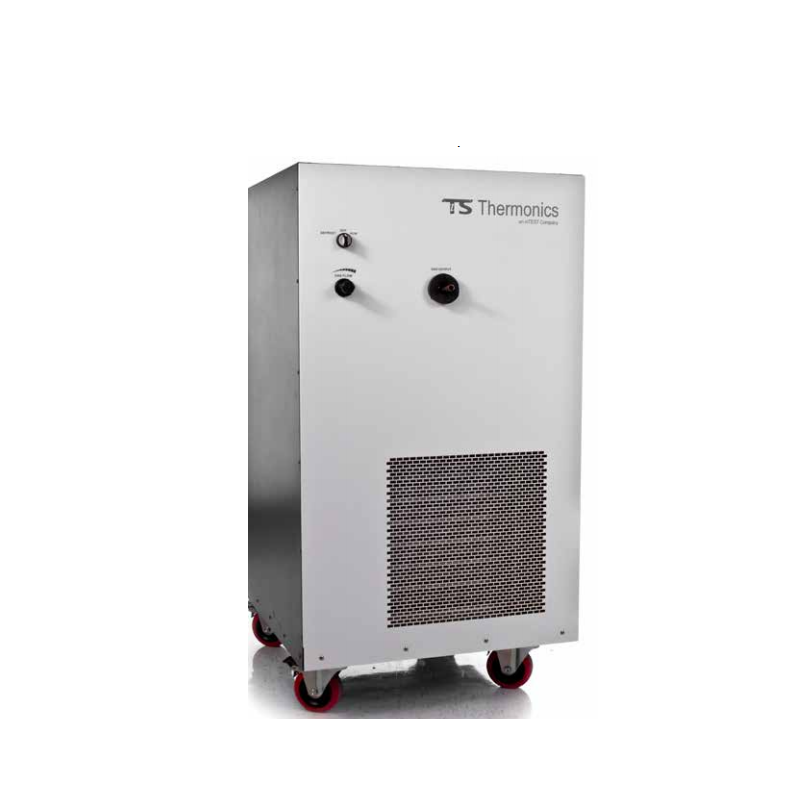

Thermonics AC-95 Air Chiller (-95°C)

Temperature Performance:

-95°C at chiller output at 18scfm (60Hz)

-90°C at chiller output at 18scfm (50Hz)

Air Flow Rate: 4-18scfm (1.9 - 8.5 l/s) with air supply of 15-30 scfm (7.1-14.2 l/s)

System Dimensions (HxWxD): 46.0 x 24.0 x 26.0” (117 x 61 x 66cm)

System Weight: 380 lbs. (172.4 kg)

Air Connections: Input (rear) 5/8” barbed fitting; Output (front) 1/2” OD copper tube

Power Requirements: Voltage: 200 to 230 VAC, single phase; Frequency: 50/60 Hz; Current: up to 20A

Clean, Dry Air (CDA) Requirements:

Filtered to 5 micron particulate contamination

Oil Content: <0.1 ppm, by weight, filtered to 0.01 micron

Dew point: <+10°C @ 6.9 BAR (100PSI)

Air Supply Pressure: 6.2 to 7.6 BAR (90 to 110 PSIG, 100PSI nominal)

Total Air Flow Rate Required: 15 to 30scfm (7.1-14.2 l/s)

Air Supply Temperature: 20 to 25°C (22°C nominal)

Ambient Operating Temperature: 20 to 28°C (23°C nominal)

Ambient Operating Humidity: 0 to 60% (45% nominal)

Compliance: Designed to meet CE, EN 61010, NEC

Documentation: User’s manual
