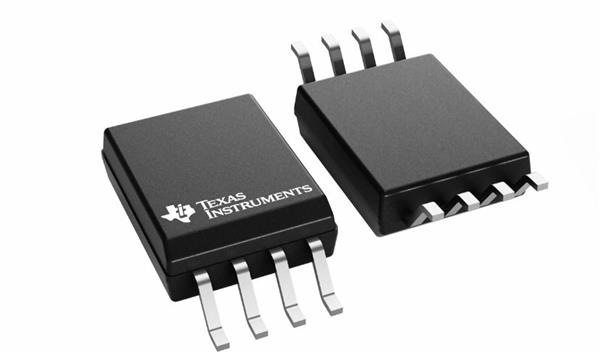

Texas Instruments TPSI3050QDWZRQ1 Automotive Reinforced Isolated Switch Driver Automotive reinforce d isolated switch dr

Shutdown: Shutdown

Fall Time: 5 ns

Rise Time: 6 ns

Mounting Style: SMD/SMT

Output Current: 1.5 A, 3 A

Output Voltage: 10.2 V

Isolation Voltage: 3000 Vrms

Number of Outputs: 1 Output

Moisture Sensitive: Yes

Number of Channels: 1 Channel

Input Voltage - Max: 48 V

Input Voltage - Min: 3 V

Pd - Power Dissipation: 350 mW

Propagation Delay - Max: 3 us, 4.5 us

Operating Supply Current: 37 mA

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

Rds On - Drain-Source Resistance: 1.7 Ohms, 2.5 Ohms
