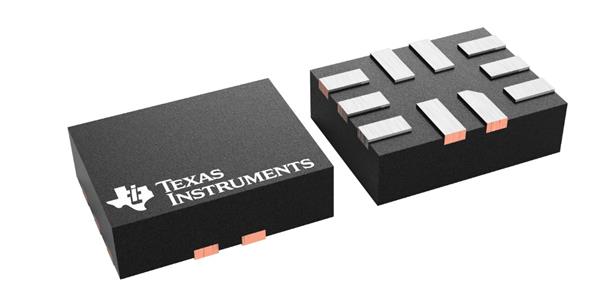

Texas Instruments TMUX121NKGR Multiplexers 2-pF 3.3-V 2:1 (SP DT) 2-channel swit

Bandwidth: 3 GHz

Supply Type: Single Supply, Dual Supply

Configuration: 2 x 2:1

On Time - Max: 16 us

Mounting Style: SMD/SMT

Off Time - Max: 500 ns

Development Kit: DIYAMP-EVM

Number of Channels: 2 Channel

Off Isolation - Typ: - 56 dB

On Resistance - Max: 8 Ohms

Supply Current - Max: 30 uA

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 3 V

Propagation Delay Time: 60 ps

Operating Supply Voltage: 3.3 V

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
