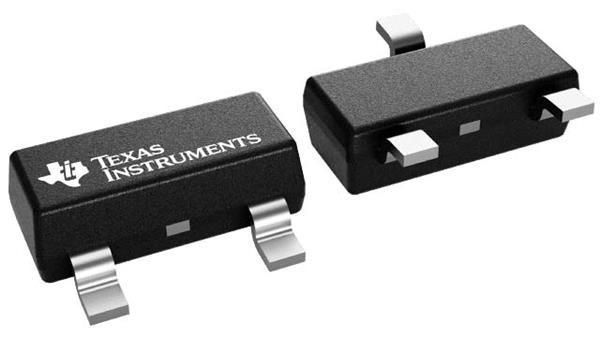

Texas Instruments TMAG5213ADQDBZR Low-Cost Hall-Effect Latch High-bandwidth (30-k Hz) high-voltage (2

Shaft Type: No Shaft

Output Type: Open Drain

With Switch: Without Switch

Mounting Style: SMD/SMT

Output Voltage: 0 V to 28 V

Termination Style: Solder

Supply Voltage - Max: 28 V

Supply Voltage - Min: 2.5 V

Maximum Output Current: 30 mA

Operating Point Min/Max: 1 mT to 5 mT

Operating Supply Current: 2.7 mA

Operating Supply Voltage: 2.5 V ot 28 V

Release Point Min/Max (Brp): - 5 mT to - 1 mT

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
