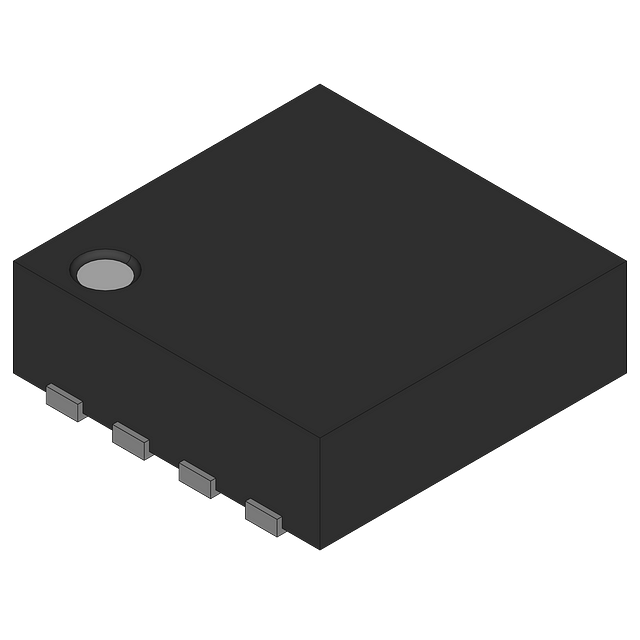

Width: 4 mm
Height: 0.9 mm
Length: 4 mm
Features: Small Size
Shutdown: No Shutdown
Input Type: Rail-to-Rail
Technology: Bipolar
Output Type: Rail-to-Rail
Supply Type: Dual
Unit Weight: 24 mg
Amplifier Type: Low Offset Amplifier
Mounting Style: SMD/SMT
SR - Slew Rate: 800 mV/us
Voltage Gain dB: 140 dB
Number of Channels: 1 Channel
Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V
Supply Voltage - Max: 36 V
Supply Voltage - Min: 4 V
Ib - Input Bias Current: 500 pA
Operating Supply Current: 790 uA
Operating Supply Voltage: +/- 2 V to +/- 18 V
Output Current per Channel: 35 mA
Vos - Input Offset Voltage: 35 uV
Maximum Dual Supply Voltage: +/- 18 V
Minimum Dual Supply Voltage: +/- 2 V
GBP - Gain Bandwidth Product: 1 MHz
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
In - Input Noise Current Density: 0.2 pA/sqrt Hz
en - Input Voltage Noise Density: 8 nV/sqrt Hz
CMRR - Common Mode Rejection Ratio: 140 dB
