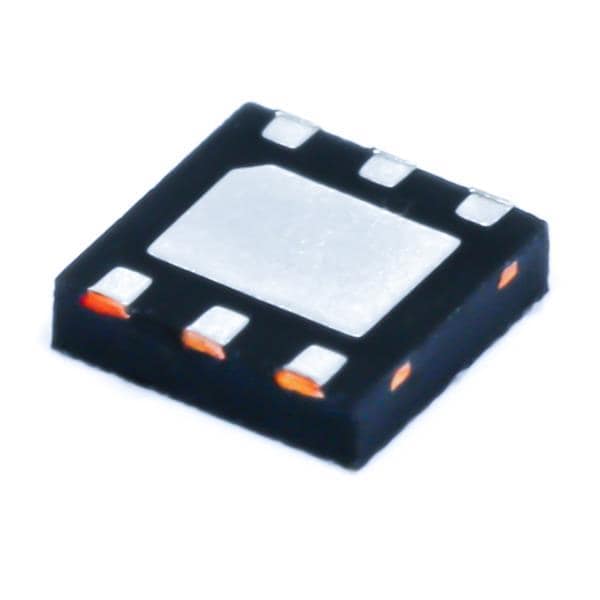

Texas Instruments LP38692SD-5.0/NOPB Low Dropout Linear Regulator 1A LDO CMOS Linear R egs Stable A 926-LP38692SDX50NOPB
Manufacturer: Texas Instruments Model: LP38692SD-5.0/NOPB - Contact
Polarity: Positive
Output Type: Fixed
Unit Weight: 9.700 mg
Mounting Style: SMD/SMT
Output Current: 1 A
Output Voltage: 5 V
Dropout Voltage: 450 mV
Line Regulation: 0.03 %/V
Load Regulation: 1.8 %/A
Number of Outputs: 1 Output
Quiescent Current: 100 uA
Input Voltage - Max: 10 V
Input Voltage - Min: 2.7 V
Dropout Voltage - Max: 0.1 V at 100 mA, 0.8 V at 1 A
Ib - Input Bias Current: 55 uA
Operating Supply Current: 55 uA
Voltage Regulation Accuracy: 2.5 %
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
PSRR / Ripple Rejection - Typ: 55 dB
