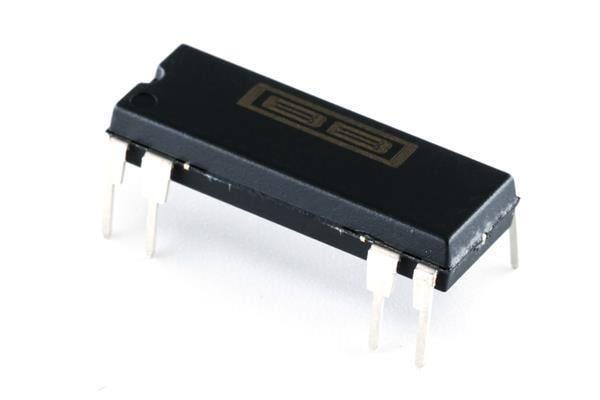

Texas Instruments ISO122P Isolation Amplifiers Precision Low Cost I solation Amp

Gain Error: 0.02 %

Unit Weight: 1 g

3 dB Bandwidth: 50 kHz

Amplifier Type: Isolation

Isolation Type: Capacitive, Galvanic

Mounting Style: Through Hole

Isolation Voltage: 1500 Vrms

Number of Channels: 1 Channel

Supply Voltage - Max: 18 V

Supply Voltage - Min: 4.5 V

Operating Supply Current: 5.5 mA

Operating Supply Voltage: + / - 4.5 V to + / - 18 V

Vos - Input Offset Voltage: 20 mV

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 25 C

CMRR - Common Mode Rejection Ratio: 140 dB
