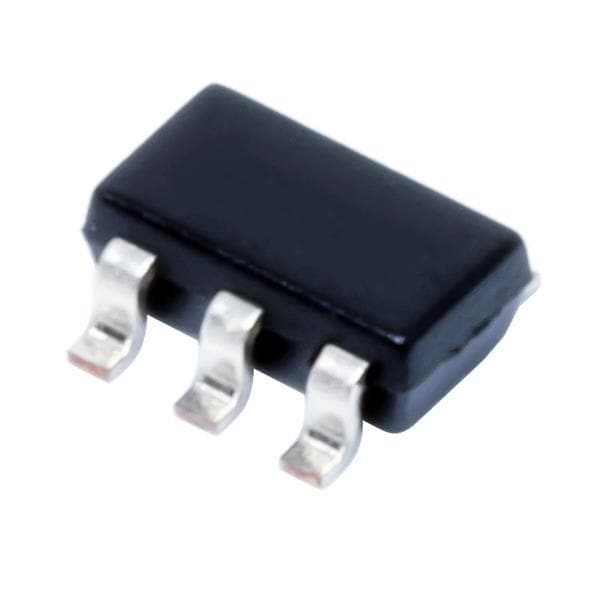

Texas Instruments INA197AIDBVR Current Shunt Monitor Vltg Out Hi-Sd Msmnt Current Shunt Mntr A 595-INA197AIDBVT
Manufacturer: Texas Instruments Model: INA197AIDBVR - Contact
Gain: 33.98 dB (Typ)
Accuracy: 3 %
Features: Analog Output, Low-side Capable
Bandwidth: 300 kHz
Unit Weight: 87 mg
Mounting Style: SMD/SMT
Sensing Method: High Side
Moisture Sensitive: Yes
Input Voltage Range: 2.7 V to 18 V
Supply Voltage - Max: 18 V
Supply Voltage - Min: 2.7 V
Ib - Input Bias Current: 16 uA
Operating Supply Current: 900 uA
Operating Supply Voltage: 3 V, 5 V, 9 V, 12 V, 15 V
Vos - Input Offset Voltage: 2 mV
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
