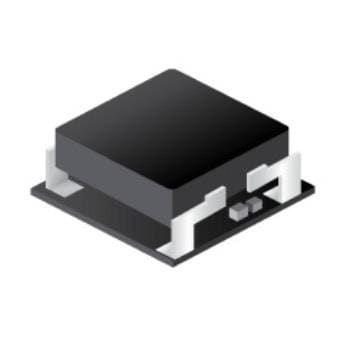

Texas Instruments CC2651R3SIPAT0MOUR Wireless Module SimpleLink multipro tocol 2.4-GHz wirele

Core: ARM Cortex M4

Data Rate: 3 Mb/s

Frequency: 2.4 GHz

Dimensions: 7 mm x 7 mm

Memory Size: 352 kB, 32 kB

Sensitivity: - 104 dBm

Output Power: 5 dBm

Interface Type: I2C, I2S, SPI, SSI, UART

Mounting Style: SMD/SMT

Moisture Sensitive: Yes

Supply Voltage - Max: 3.8 V

Supply Voltage - Min: 1.8 V

Antenna Connector Type: External, Integrated

Operating Supply Voltage: 1.8 V to 3.8 V

Supply Current Receiving: 6.8 mA

Supply Current Transmitting: 9.6 mA

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: Thread, Zigbee
