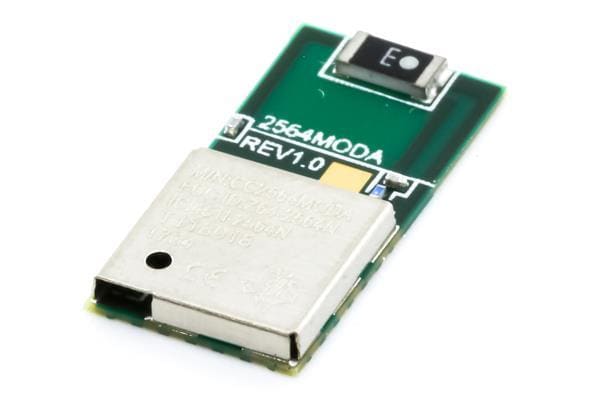

Texas Instruments CC2564MODACMOG Bluetooth Modules Dual-mode Bluetooth CC2564 Module

Class: Class 1.5

Width: 7.1 mm

Height: 1.4 mm

Length: 7.1 mm

Antenna: Integrated

Protocol: Bluetooth 4.1

Data Rate: 3 Mb/s

Frequency: 2.44 GHz

Sensitivity: - 93 dBm

Unit Weight: 2.754 g

Output Power: 10 dBm

Interface Type: I2S, UART

Mounting Style: SMD/SMT

Frequency Range: 2.402 GHz to 2.48 GHz

Receiver Sensitivity: - 93 dBm

Supply Voltage - Max: 4.8 V

Supply Voltage - Min: 2.2 V

Antenna Connector Type: Integrated

Operating Supply Voltage: 2.2 V to 4.8 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 30 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth
