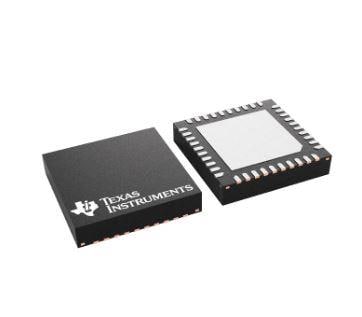

Texas Instruments CC2340R52E0RKPR BLE 5.3 SimpleLink 32-bit Ar m Cortex -M0+ Blueto

Core: ARM Cortex M0+

Width: 5 mm

Height: 1 mm

Length: 5 mm

Technology: Si

Output Power: 8 dBm

Data RAM Size: 36 kB

Data RAM Type: SRAM

ADC Resolution: 12 bit

Interface Type: I2C, SPI, UART

Mounting Style: SMD/SMT

Number of I/Os: 26 I/O

Number of Timers: 3 x 16 bit, 1 x 24 bit

Moisture Sensitive: Yes

Operating Frequency: 2.4 GHz

Program Memory Size: 512 kB

Program Memory Type: Flash

Supply Voltage - Max: 3.8 V

Supply Voltage - Min: 1.71 V

Maximum Clock Frequency: 48 MHz

Operating Supply Voltage: 1.71 V to 3.8 V

Operating Temperature Range: - 40 C to + 125 C

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
