Texas Instruments AWR2243APBGABLRQ1 RF Transceiver 76-GHz to 81-GHz automotive second-generation high-performance MMIC 161-FC/CSP -40 to 140

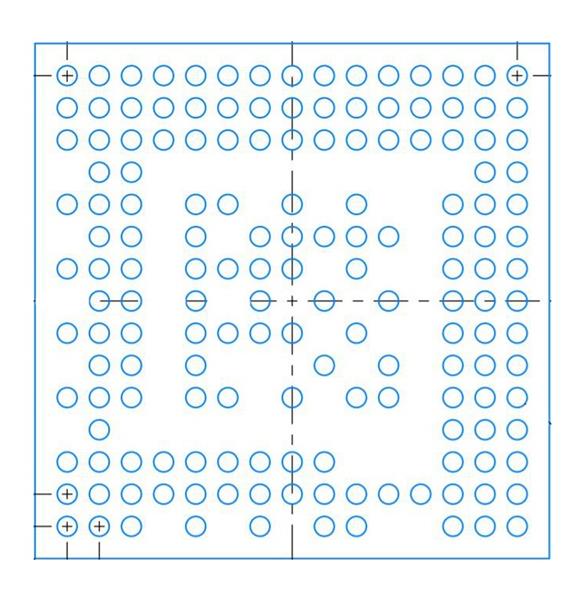

Dimensions: 10.4 mm x 10.4 mm

Technology: Si

Output Power: 13 dBm

Interface Type: I2C, SPI

Mounting Style: SMD/SMT

Frequency Range: 76 GHz to 81 GHz

Maximum Data Rate: 45 Mbps

Moisture Sensitive: Yes

Number of Receivers: 4 Receiver

Supply Voltage - Max: 1.32 V

Supply Voltage - Min: 1.14 V

Number of Transmitters: 3 Transmitter

Operating Supply Voltage: 1.2 V

Maximum Operating Temperature: + 140 C

Minimum Operating Temperature: - 40 C
