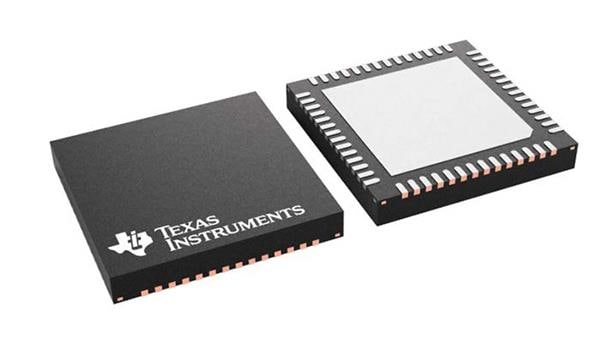

Texas Instruments ADS9212RSHR ADCs 18-bit 8MSPS dual simultaneous-samplin

Shutdown: No Shutdown

Gain Error: 0.04 % FSR

Resolution: 18 bit

Architecture: SAR

Sampling Rate: 8 MS/s

Interface Type: SPI

Mounting Style: SMD/SMT

Number of ADCs: 2 ADC

Reference Type: External, Internal

Development Kit: ADS9212EVM

Power Consumption: 220 mW

Reference Voltage: 4.096 V

Number of Channels: 2 Channel

Supply Voltage - Max: 5.25 V

Supply Voltage - Min: 1.15 V

Number of ADC Channels: 2 Channel

Pd - Power Dissipation: 232 mW

Maximum Clock Frequency: 96 MHz

INL - Integral Nonlinearity: 0.8 LSB

SNR - Signal to Noise Ratio: 92.3 dB

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

DNL - Differential Nonlinearity: 0.5 LSB
