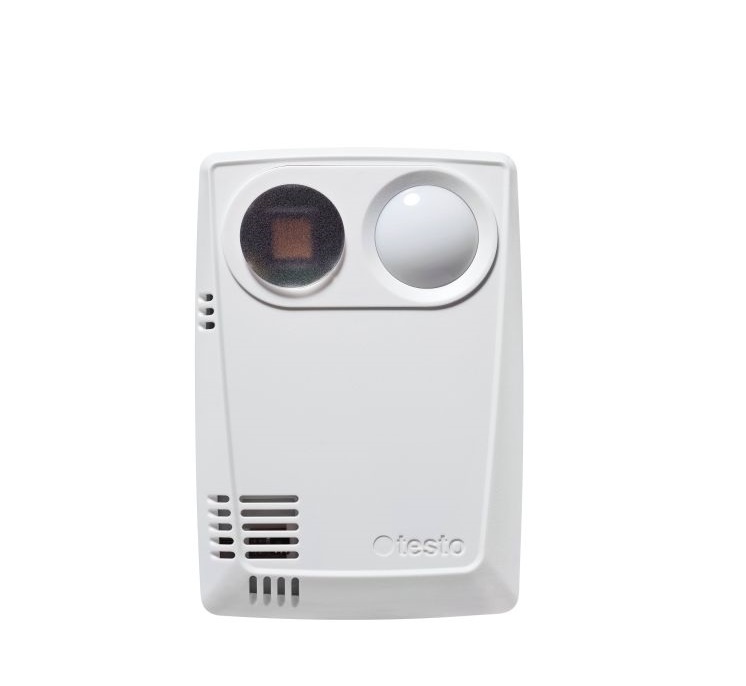

TESTO 160 THL WiFi Data Logger With Integrated Sensor For Temparature, Humidity, Lux and UV Radiation

Humidity - Capacitive

Measuring range: 0 to 100 %RH (non-condensing)

Accuracy: ±2.0 %RH at +25 °C and 20 to 80 %RH

±3.0 %RH at +25 °C and < 20 and > 80 %RH

±1.0 %RH hysteresis

±1.0 %RH / year drift

Resolution: 0.1 %RH

Temperature

Measuring range: -10 to +50 °C

Accuracy: ±0.5 °C

Resolution: 0.1 °C

Light

Measuring range: 0 to 20000 Lux

Accuracy: DIN 5032-7 Class C-compliant.

±3.0 Lux or ±3.0 % of mv refers to reference DIN 5032-7 Class L)

Resolution: 0.1 Lux

UV

Measuring range: 0 to +10000 mW/m²

Accuracy: ±5 mW/m² or ±5 % of mv (refers to external reference)

Resolution: 0.1 mW/m²

General technical data

Dimensions: 92 x 64 x 24 mm

Operating temperature: -10 to +50 °C

Protection class: IP20

Measuring rate: Dependent on Cloud licence; Basic: 15 min … 24 h / Advanced: 1 min … 24 h

Communication rate: Dependent on Cloud licence; Basic: 15 min … 24 h / Advanced: 1 min … 24 h

WLAN Connectivity: supported wireless LAN standards: IEEE 802.11 b/g/n and IEEE 802.1X; Possible encryption methods: WPA2 Enterprise: EAP-TLS, EAP-TTLS-TLS, EAP-TTLS-MSCHAPv2, EAP-TTLS-PSK, EAP-PEAP0-TLS, EAP-PEAP0-MSCHAPv2, EAP-PEAP0-PSK, EAP-PEAP1-TLS, EAP-PEAP1-MSCHAPv2, EAP-PEAP1-PSK, WPA Personal, WPA2 (AES), WPA (TKIP), WEP

Battery life: 1.5 years

Power supply: 4 x AAA batteries 1.5 V, alternatively mains unit via USB connection

Memory: 32,000 Measuring values / Sum of all channels

Storage temperature: -20 to +50 °C

Weight: 113 g
