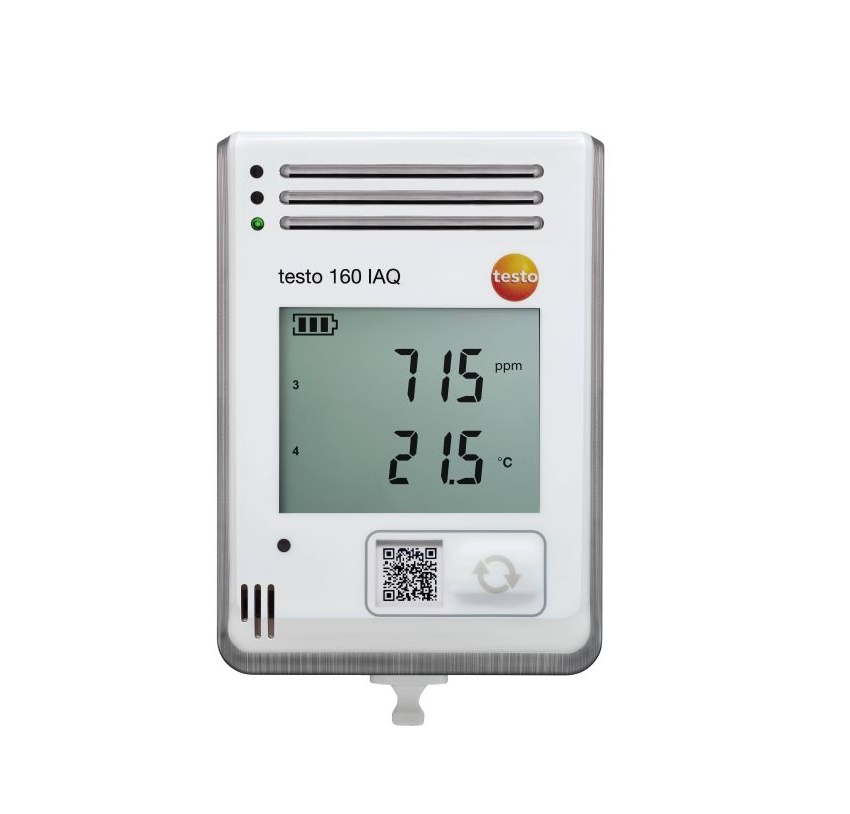

TESTO 160 IAQ WiFi Data Logger With Display And Integrated Sensors For Temperature, Humidity, CO2 And Atmospheric Pressure

Humidity - Capacitive

Measuring range: 0 ~100 %RH (non-condensing)

Accuracy: ±2.0 %RH at +25 °C and 20 ~80 %RH

±3.0 %RH at +25 °C and < 20 and > 80 %RH

±1.0 %RH hysteresis

±1.0 %RH / year drift

Resolution: 0.1 %RH

Absolute Pressure

Measuring range: 600 ~1100 mbar

Accuracy: ±3 mbar at +22 °C

Resolution: 1 mbar

Ambient CO₂

Measuring range: 0 ~5000 ppm

Accuracy: ±(50 ppm + 3 % of mv) at 25 °C

Without external power supply: ±(100 ppm + 3 % of mv) at 25 °C

Resolution: 1 ppm

Temperature

Measuring range: 0 ~+50 °C

Accuracy: ±0.5 °C

Resolution: 0.1 °C

General technical data

Dimensions: 117 x 82 x 32 mm ((LxWxH))

Operating temperature: 0 ~+50 °C

Product-/housing material: PC - ABS

Protection class: IP20

Product colour: white

Measuring rate: Dependent on Cloud licence; Basic: 15 min … 24 h / Advanced: 1 min … 24 h

Communication rate: Dependent on Cloud licence; Basic: 15 min … 24 h / Advanced: 1 min … 24 h

WLAN Connectivity: supported wireless LAN standards: IEEE 802.11 b/g/n and IEEE 802.1X; Possible encryption methods: WPA2 Enterprise: EAP-TLS, EAP-TTLS-TLS, EAP-TTLS-MSCHAPv2, EAP-TTLS-PSK, EAP-PEAP0-TLS, EAP-PEAP0-MSCHAPv2, EAP-PEAP0-PSK, EAP-PEAP1-TLS, EAP-PEAP1-MSCHAPv2, EAP-PEAP1-PSK, WPA Personal, WPA2 (AES), WPA (TKIP), WEP

Alarm function: LED (traffic light function: red, yellow, green)

Battery life: 1 year

Display type: LCD (Liquid Crystal Display)

Power supply: 4 x AA batteries 1.5 V, alternatively mains unit via USB connection

Interface: USB

Radio range: 100 m

Memory: 32,000 Measuring values / Sum of all channels

Storage temperature: 0 ~+50 °C

Dimension display: 55 x 42 mm

Weight: 269 g
