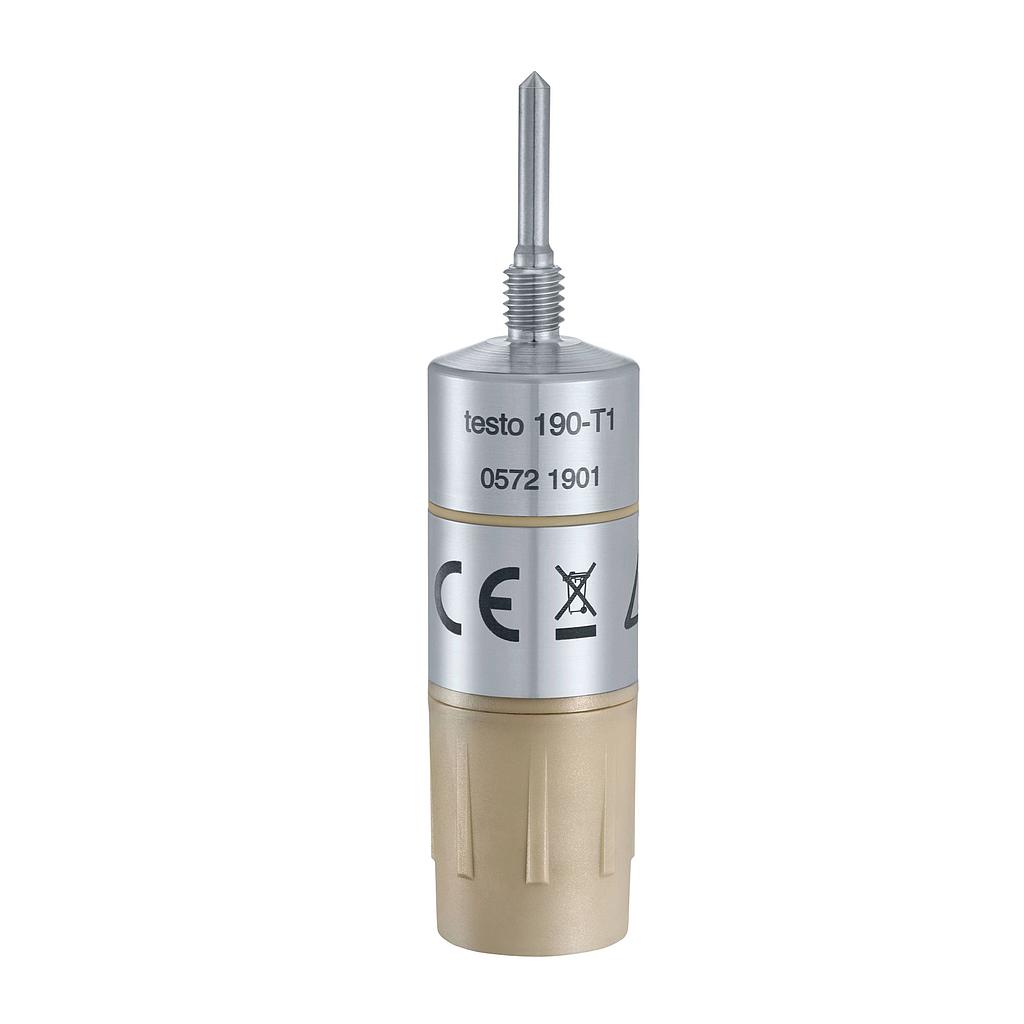

TESTO 190-T1 CFR Temperature Data Logger (-50~140°C)

General technical data

Dimensions: 20.0 x 59.0 mm (ø x height)

Operating temperature: -50 to +140 °C

Product-/housing material: Stainless steel, PEEK plastic

Protection class: IP68

Length probe shaft: 25 mm

Diameter probe shaft: 3 mm

Measuring rate: 1 s to 24 h

Channels: 1

Authorizations: CE

Battery type: 1/2 AA lithium

Battery life: 2,500 operating hours (measuring cycle 10 sec at +121 °C)

Memory: 60,000 measuring values

Storage temperature: -20 to +50 °C

Temperature - Pt1000

Measuring range: -50 to +140 °C

Accuracy: ±0.2 °C (-50 to -40 °C)

±0.1 °C (-40 to 140 °C)

Resolution: 0.01 °C

Reaction time: t₉₀ = 7s
