Power: 220V 50Hz 100W
Weight: 85 kg
Dimensions: 550 x 750 x 1200 mm (L x W x H)
Sample holder: Dia. 200 ± 5 mm
Pressure range & accuracy: 0 ~ 2.5 mPa, +/- 2%
Precision level: class 0.4
Diameter of hole plate: Dia. 3 ± 0.05 mm
Distance between holes: 6 mm

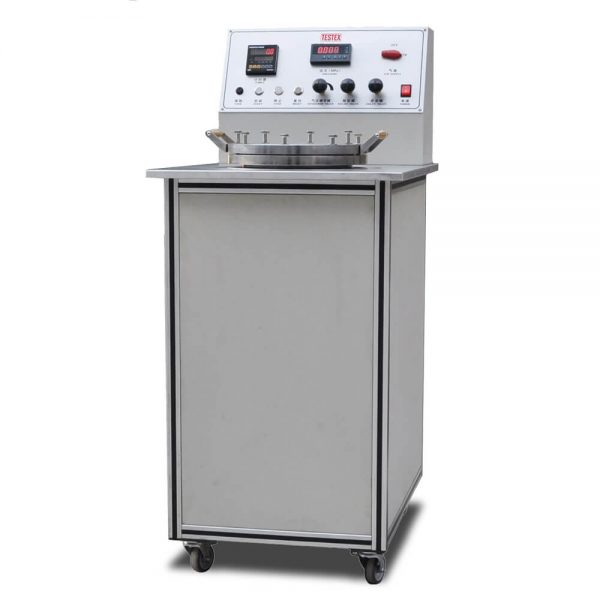

Geotextile Hydrostatic Pressure Tester, to determine the property of penetration resistance of geotextiles by static hydraulic pressure test.
Sample is clamped on the test head. The water under the sample is compressed to generate the hydrostatic pressure until the water drop appears on the sample, and the test is stopped.
