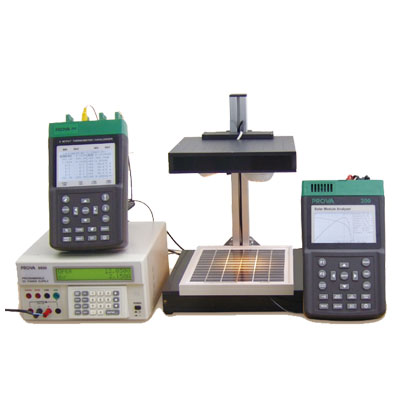

TES TES-SS1 Solar Power Development System

Manufacturer: TES
Model: TES-SS1
Original: Taiwan

Includes
- Prova 200A PV Analyzer
- Prova 800 Multi-Input Thermometer /Datalogger
- Prova 8300 Light Radiation Controller
Features
1.Control halogen lamp (or other light source) to emulate sunlight irradiance
2.Low cost for educational purpose
3.Standard pyranometer (sunlight sensor) to show true irradiance
4.User Friendly Interface
- Solar Cell / Module Table
Specifications
1.Dimension: 300 (L) x 300 (W) x 420 (H) mm
2.Height from Halogen Lamps to table base:
* Adjustable from 90mm to 30cm
* Standard: 150mm
3.Solar Cell / Module for measurement: max. 300 x 250mm
4.Light sensor: 0 ~ 1500W/m2
5.with K-type Thermocouple
6.with Halogen Lamp (Simulation of Sun Light): DC 12V, 50W x 3 pcs
7.Input Voltage (for Halogen Lamps): DC 0V ~ 40V
