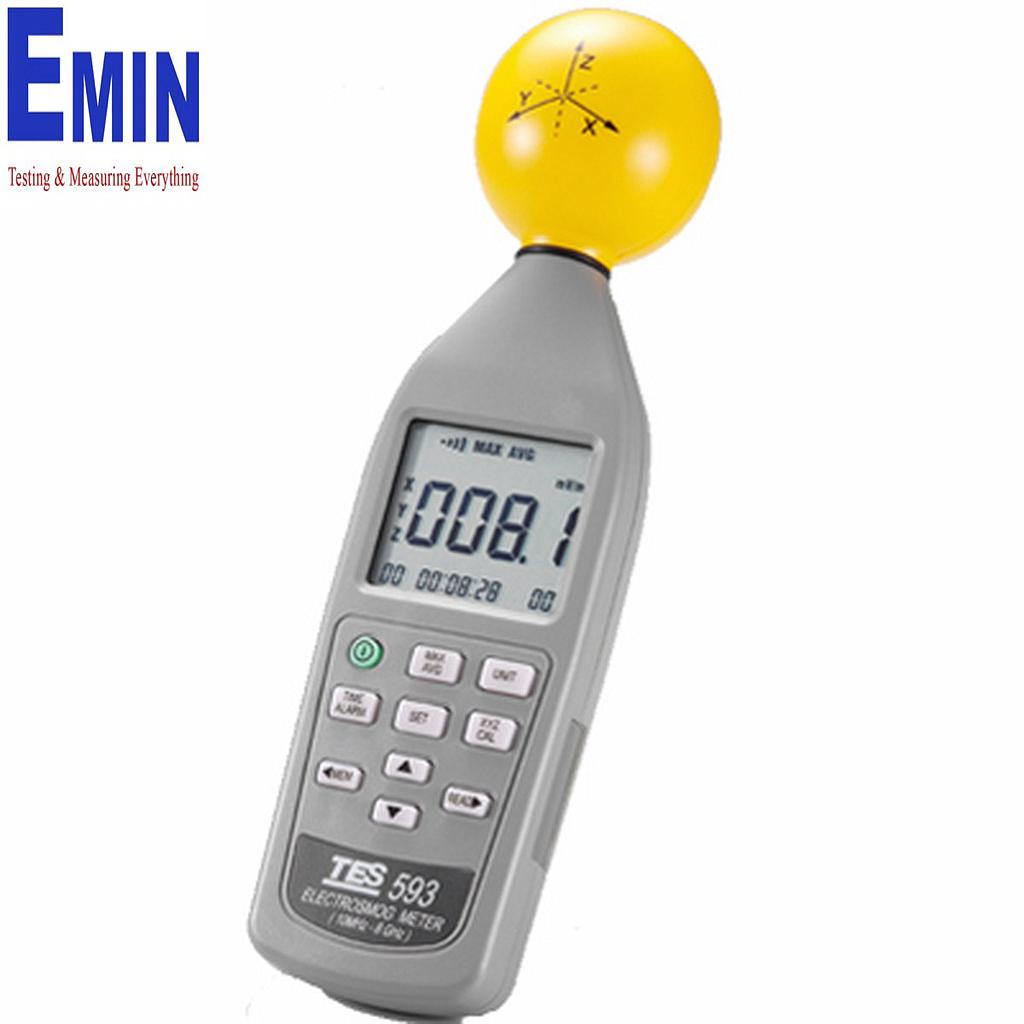

TES TES-593 Electro Smog Meter (3 axis)

Manufacturer: TES
Model: TES-593
Original: Taiwan

-Sensor type: Electric field (E)
-Frequency range: 10 MHz to 8.0 GHz
-Directional characteristic: Isotropic, 3-dimensional
-Measurement range (CW signal > 50 MHz): 20 mV/m to 108.0 V/m
53 mA/m to 286.4 mA/m
1 μW/m2 to 30.93 W/m2
0 μW/cm2 to 3.093 mW/cm2
-Absolute error (@1 V/m and 50 MHz): ± 1.0 dB
-Frequency response (taking into account typ. CAL factor): ± 1.0 dB (50 MHz to 1.9 GHz); ± 2.4 dB (1.9 GHz to 35 GHz)
-Isotropy deviation: ±1.0 dB f>50 MHz
-Overload limit: 0.42 mW/m2 (40 V/m)
-Temperature response (0 to 50ºC): ± 0.5 dB

Datasheet/ Catalogue
