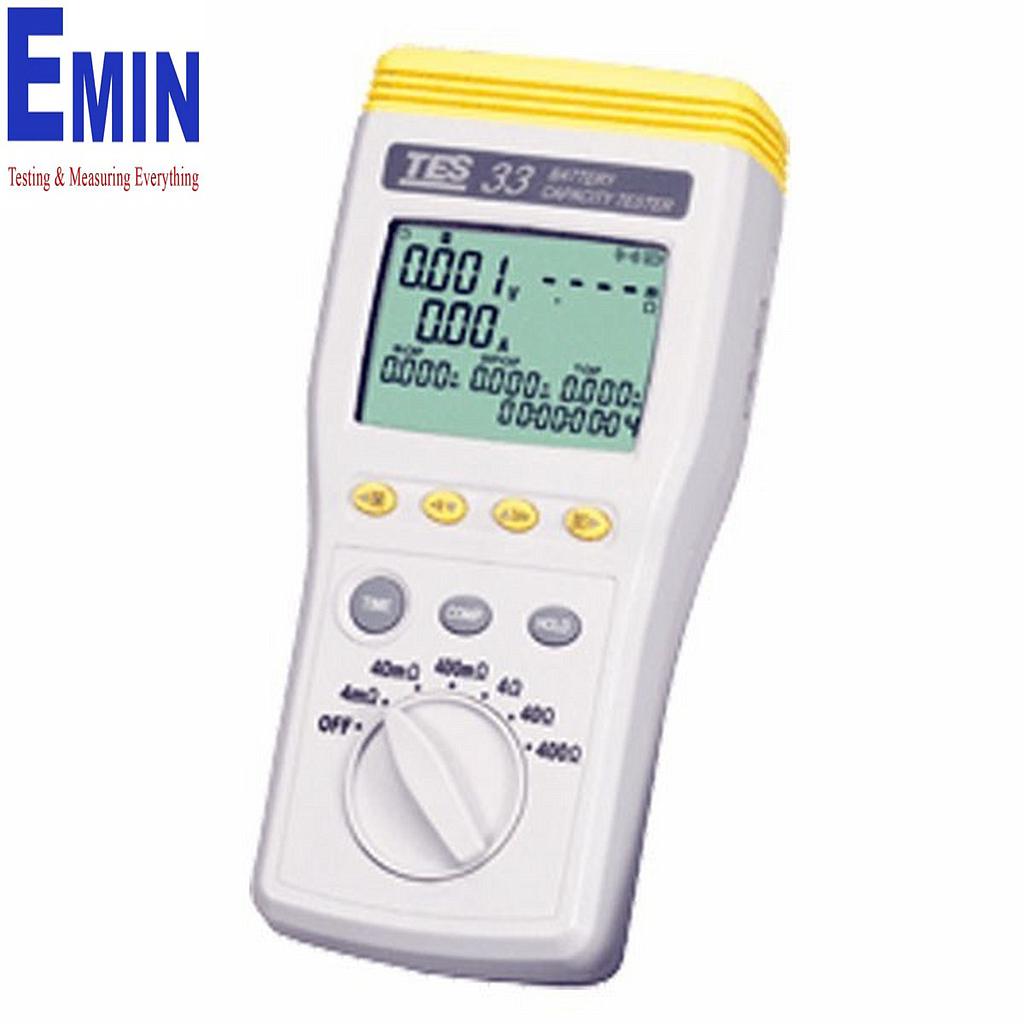

TES TES-33S Battery Capacity Tester

Manufacturer: TES
Model: TES-33
Original: Taiwan

-Test Condition Without Shutting
-Down Battery
-Simultaneously Measure Battery
-Resistance, Voltage, Current &Temperature
-Auto-hold and Auto-data storage
-Rates Conditions as Pass,
-Warning, or Fail
-Memory and Read function
-Datalogging function
-Compact and Light weight
-Manual Data Memory: 999 sets
-Continuous Data Memory: 6000 sets
-RS-232 Interface / Software
- Battery Types Tested: Compact storage batteries, Alkaline and lead-acid batteries
- Resistance: 4mΩ, 40mΩ, 400mΩ, 4Ω, 40Ω, 400Ω
- Measurement Condition:
+ Current: Approx. 40mA, 4mA, 400μA,40 μA, 4 μA
+ Frequency: 1KHz +/- 30Hz
- DC Voltage: 6V, 60V
- DC Current: 600A
- Open Circuit Voltage: 5V max

Datasheet/ Catalogue
