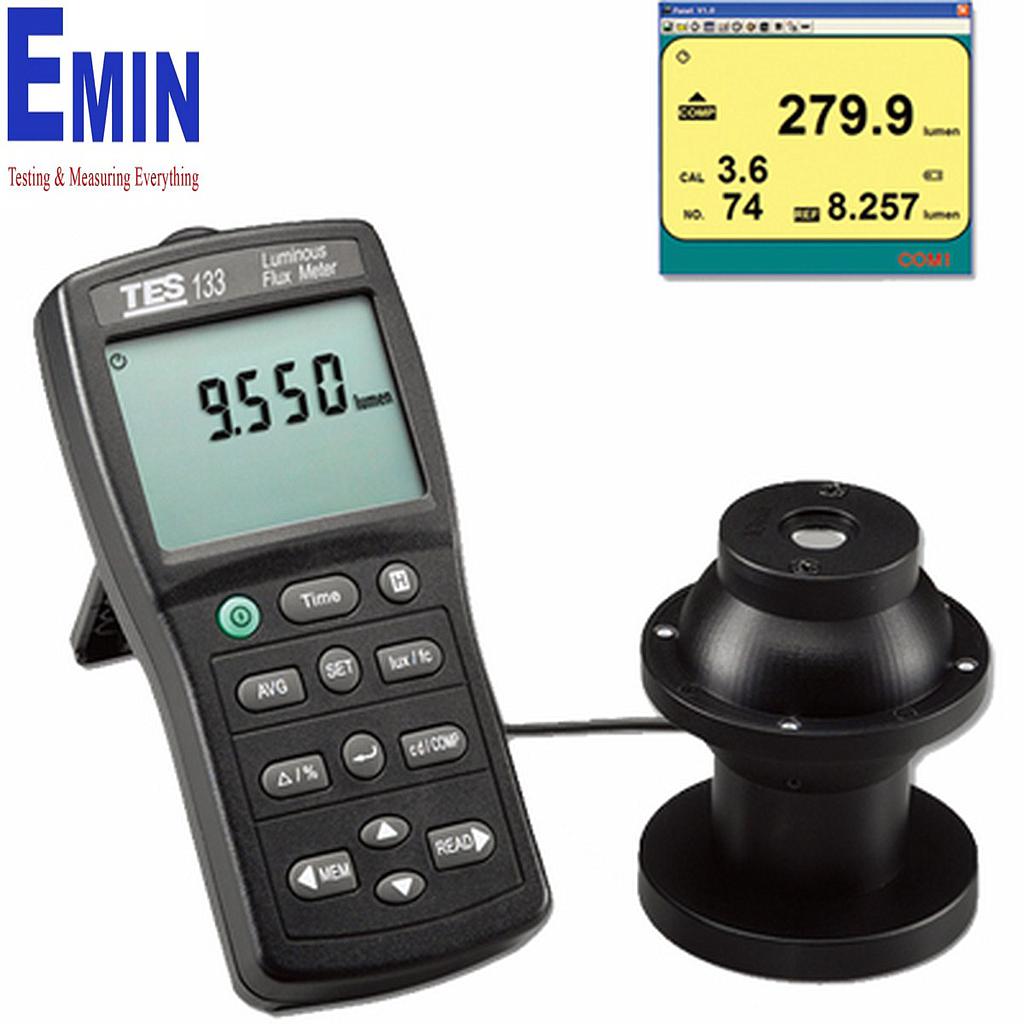

TES TES-133 Luminous Flux Meter

Manufacturer: TES
Model: TES-133
Original: Taiwan

Ideal for:
- LEDs, Optical Fiber lamps, Small lamps
Features
- Measuring range : 0.05 ~ 7000 lumens function
- RS-232 Interface / Software
- Data Memory : 999 sets (Direct reading from LCD display)
- Data Logging function : 40,000 sets
- Display: 4 digit LCD read out
- Range: 9.999, 99.99, 999.9, 7000 lumens. Auto ranging (4 Steps)
- Resolution: 0.001 lumens
- Accuracy: 0.05 ~ 0.1 - +/-7%, 0.1 ~ 1000 - +/-1%, 1000 to 7000 - +/-3%
- Integrating Sphere:
+ Diameter: 50mm
+ Sample pore: 12.7mm diameter
- CIE photopic f'1: =< 6%
- Temperature Characteristics: +/- 0.1%/°C
- Data Memory Capacity: 999 sets
- Data Logger Capacity: 40,000 sets

Datasheet/ Catalogue
