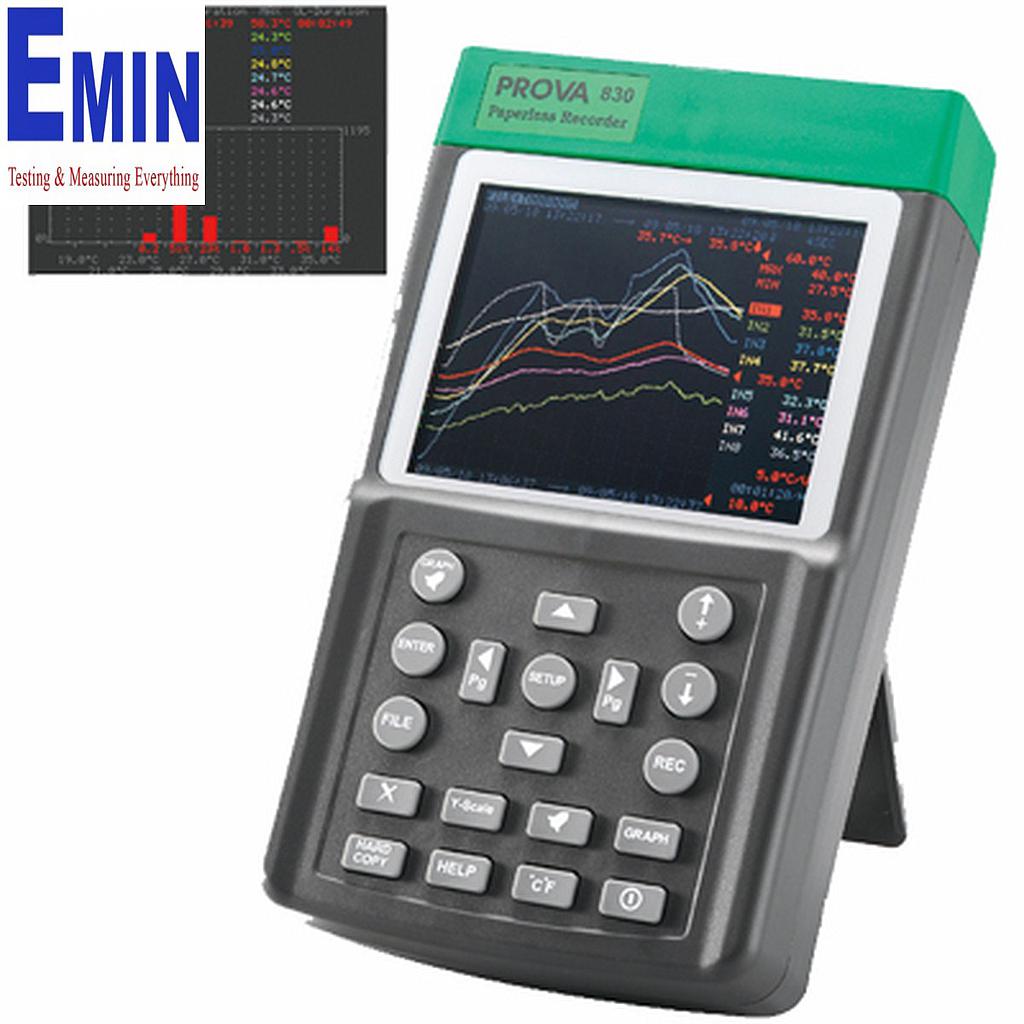

TES Prova 830 Portable Paperless recorder

Manufacturer: TES
Model: Prova 830
Original: Taiwan

Application:
PC, Semiconductor, Automotive, Airconditioning, Freezer, Metallurgy, Petroleum, Chemical, Construction materials, Papermaking, Food, Pharmacy, Agriculture, Flower planting, Thermal treatment, Water treatment
Features
- 8-input temperature measurement
- 5.7" Color TFT LCD (320 x 240) with backlight
- Timers for durations out of Hi and Lo limits
- Color graphic display of 8 curves at the same time
- Works with types K, J, E, T, R, S, N, L, U, B, & C thermocouples
- Easy socket for thermocouple mini-connector
- Basic accuracy 0.05% ±1 °C (K type)
- Programmable Hi-Lo alarm for each input
- Display of max and min values for each input
- Sampling rate 8 inputs / second
- 28 Hours Recording with Lithium Battery of 3400mAH
- Standard 2GB SD memory card (stores almost 4 years of data)
- Optional 8GB SDHC memory card
- SD card read directly by PC
- Easy data file management (Read and Delete functions)
- Built-in calendar clock
- Independent Input Setup (thermocouple type, name of Engineering Unit, Hi-Lo alarm values)
- Isolated Input Protection of 350V p-p between any two inputs
- Programmable Engineering Unit (E.U.) to integrate analog output (-60mV to 60mV) from instruments such as Clamp Meters, Humidity Meters, and Sound Level Meters
- Digital and analog (bar graph) data display
